Home
>>
Chevrolet
>>
1998
>>
Prizm L4-108 1.8L DOHC VIN 8 MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Miscellaneous Components
>>
A/C Compressor Clutch (With A/C Only)
A/C Compressor Clutch (With A/C Only)

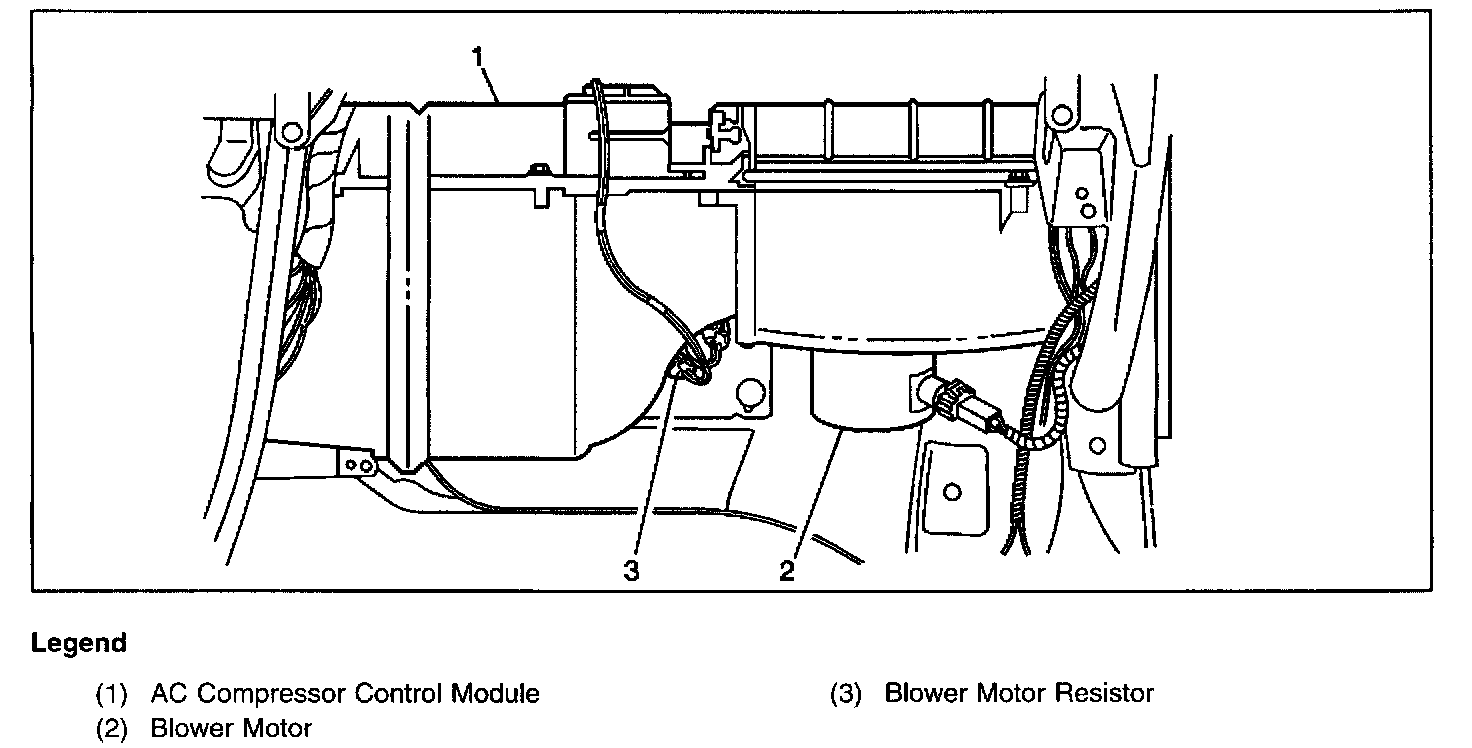

Under IP Compartment:

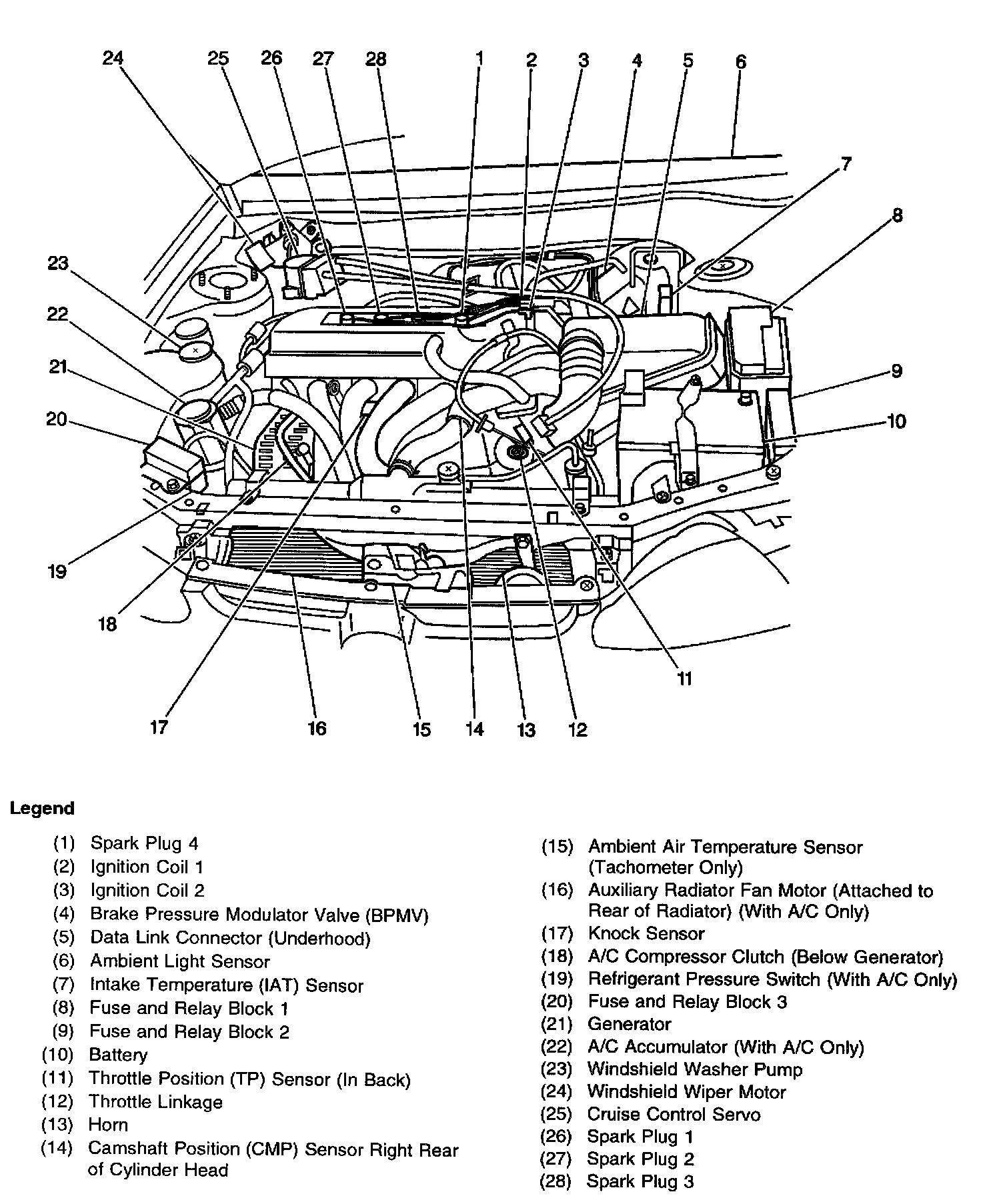

Locations View:
RH engine compartment fron of A/C compressor.
