Junction Block 2

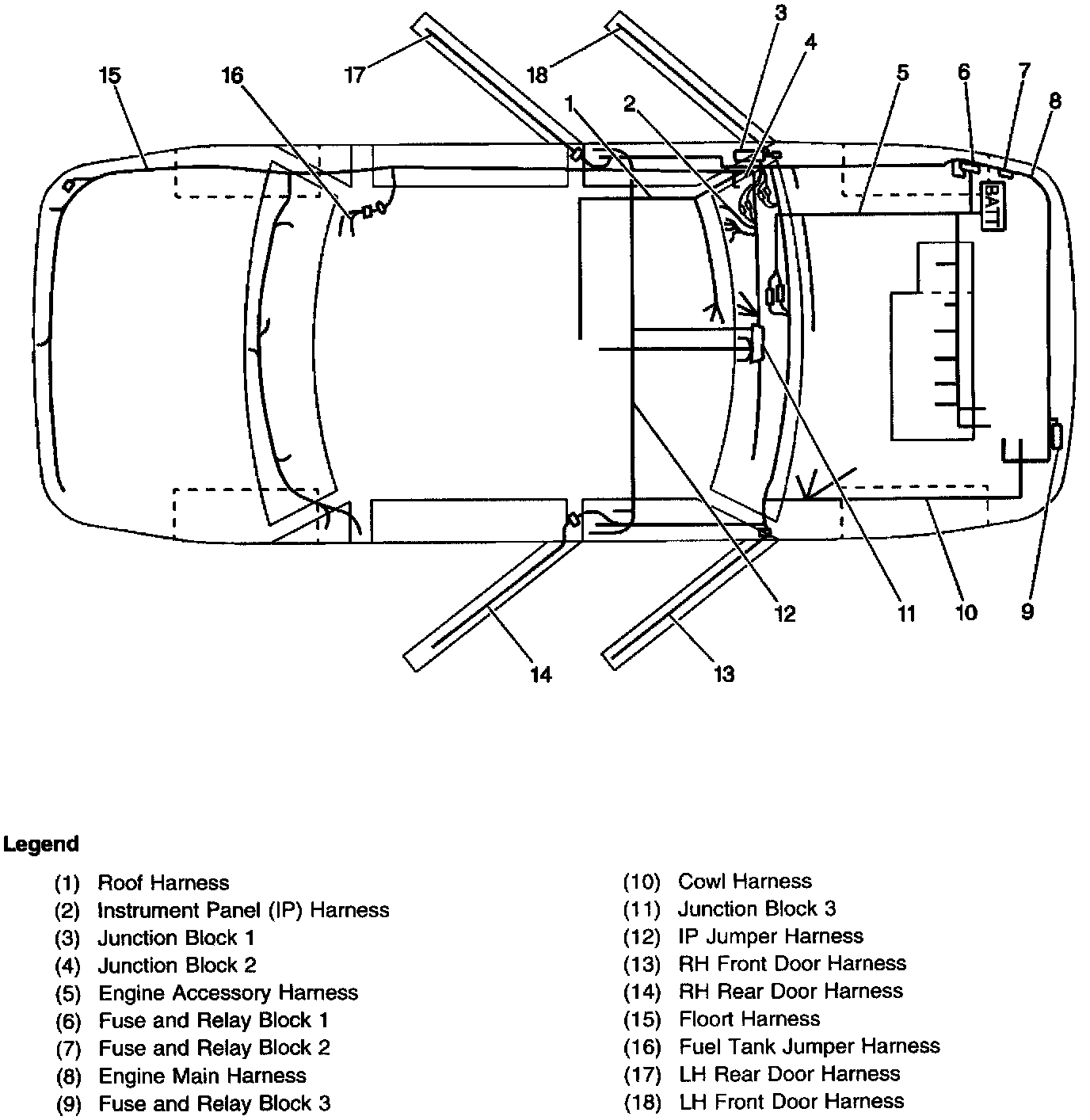

Locations View:




Harness Views:




Junction Block 2:






LH instrument panel, behind storage box access cover.
