Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1998
>>
Prizm L4-108 1.8L DOHC VIN 8 MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Instrument Panel, Gauges and Warning Indicators
>>
Audible Warning Device Control Module
Audible Warning Device Control Module

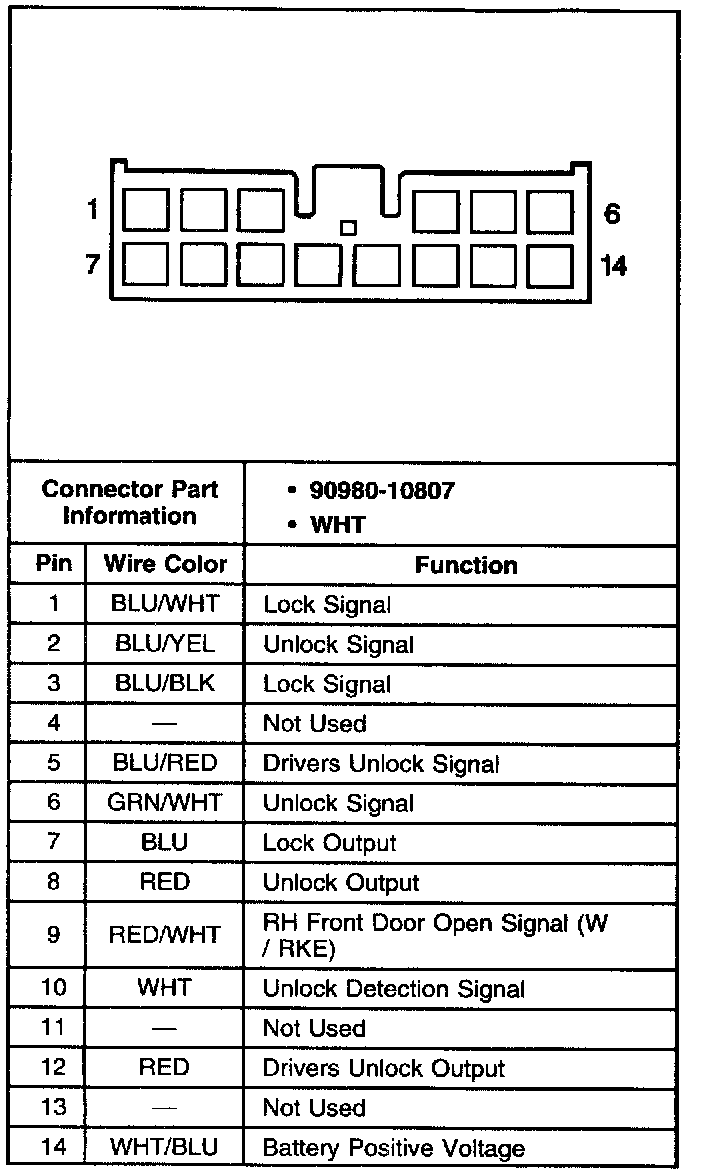

Multifunction Alarm Module: C1:

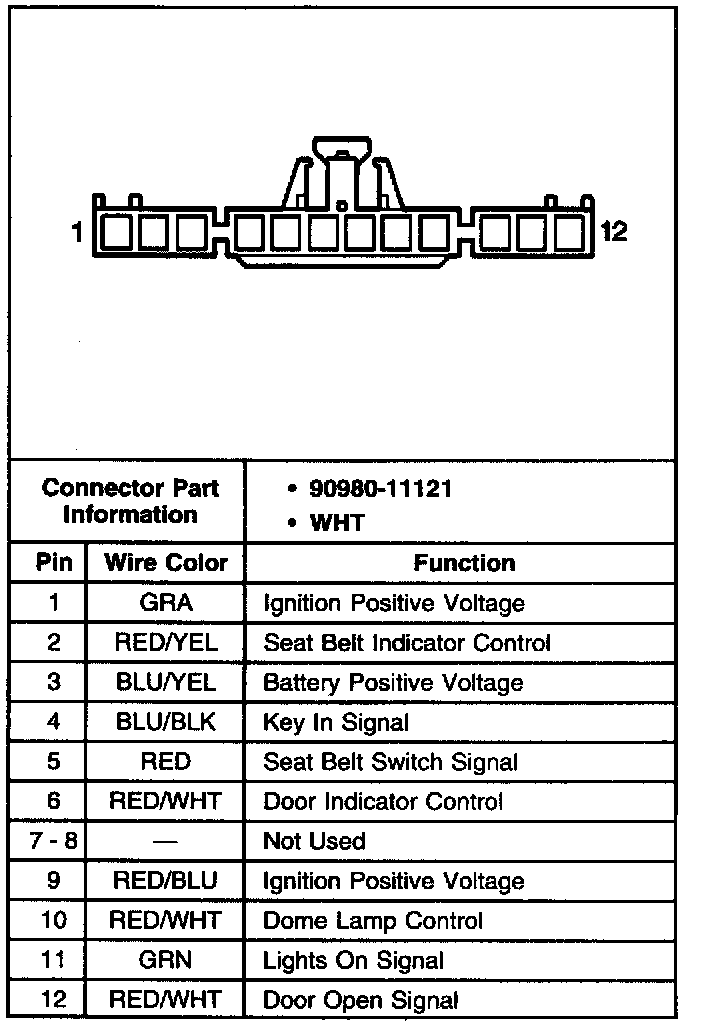

Multifunction Alarm Module: C2:
