Home >> Chevrolet >> 1998 >> Prizm L4-108 1.8L DOHC VIN 8 MFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Air Bag Systems >> SIR Steering Wheel Module Coil, Discrim Sensor, & Seat Belts

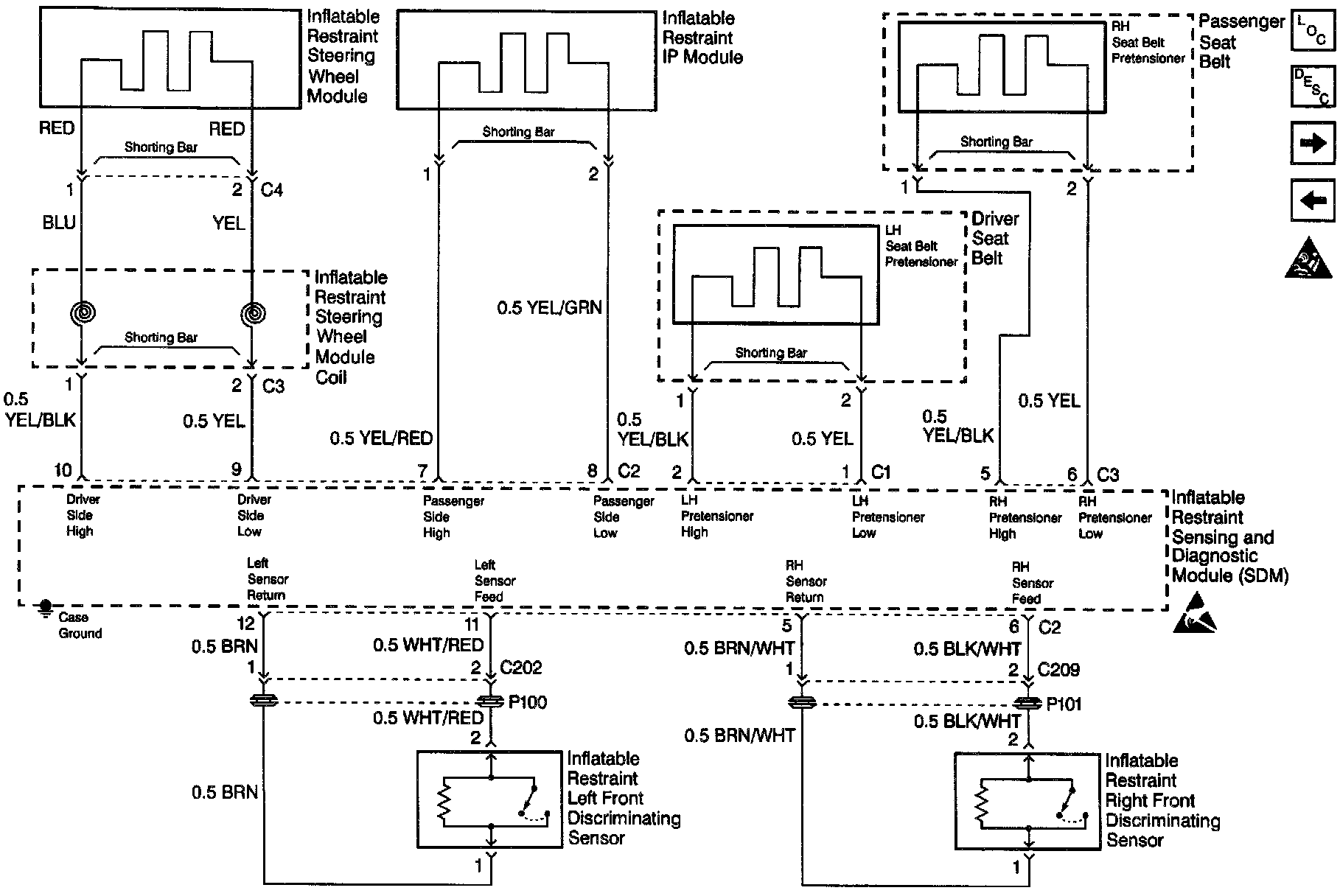

SIR Steering Wheel Module Coil, Discrim Sensor, & Seat Belts
