Cruise Control Servo, PNP SW, CPP Interrupt SW & Stoplamp SW

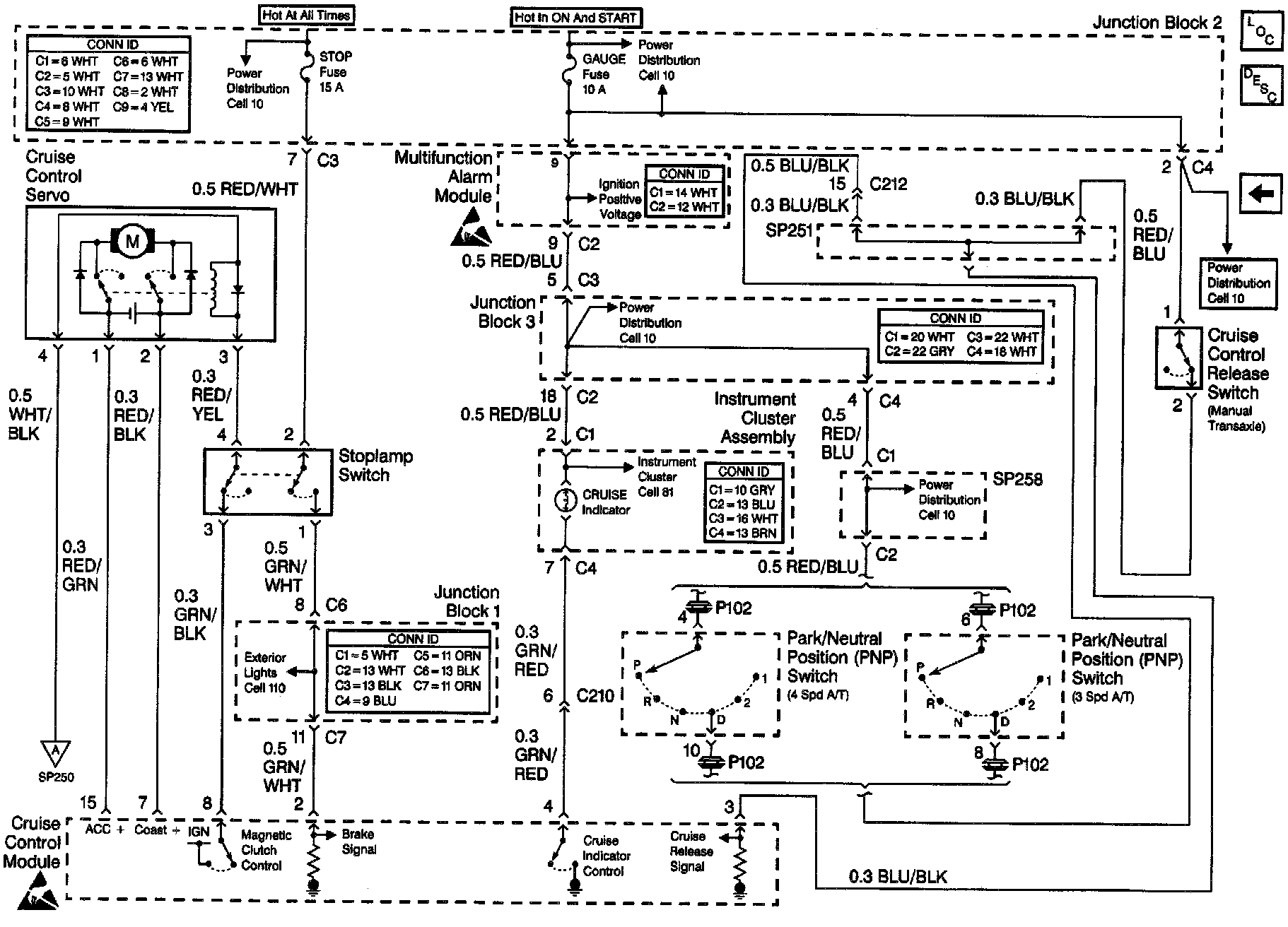

Cruise Control Schematics: Cruise Control Servo, PNP SW, CPP Interrupt SW & Stoplamp SW:
