D/L Fuse, Gauge Fuse, Dome Fuse & Multifunction Alarm Module

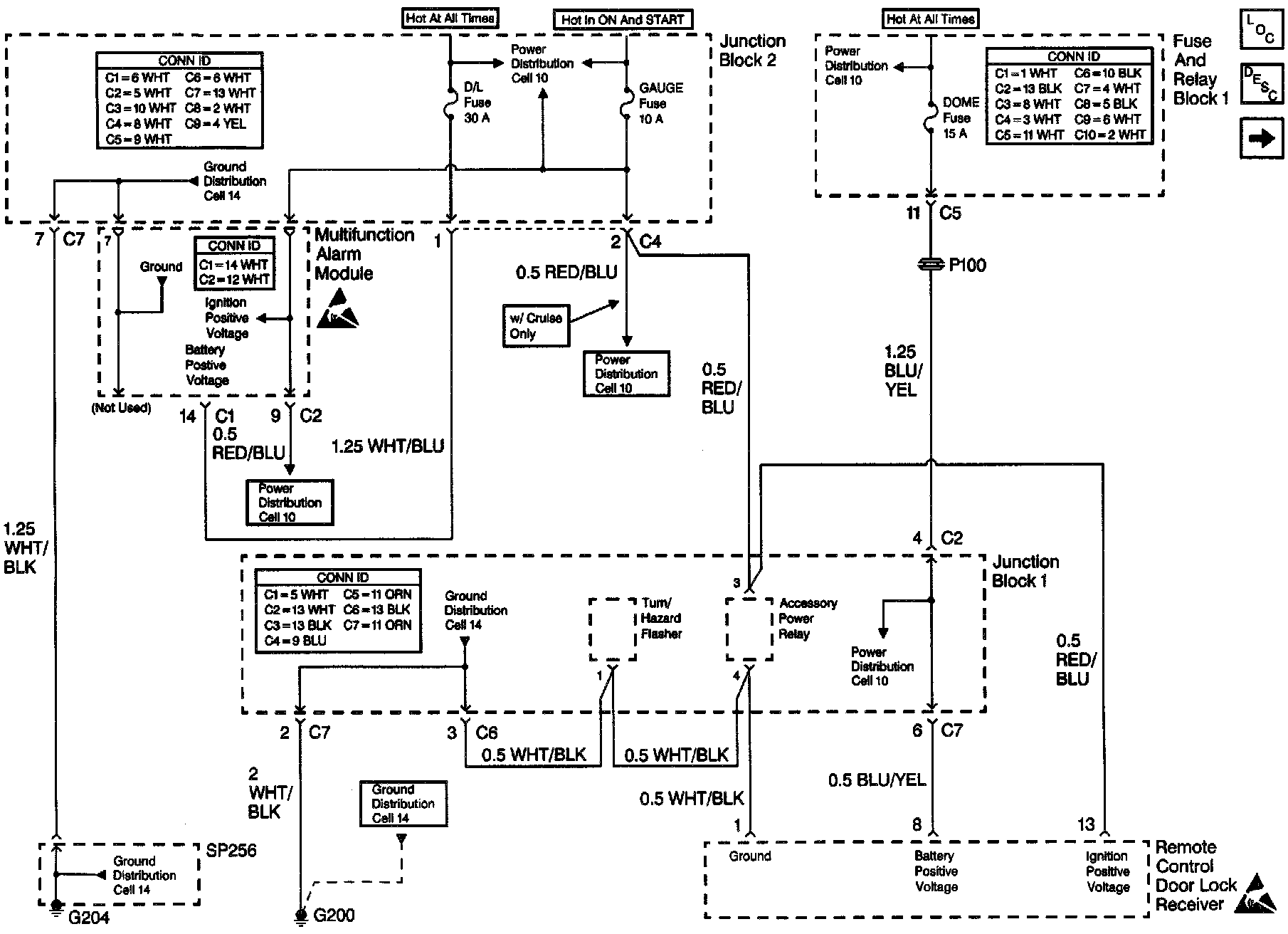

Keyless Entry Schematics: D/L Fuse, GAUGE Fuse, Dome Fuse And Multifunction Alarm Module:
