Multifunction Alarm and Door Lock Actuators

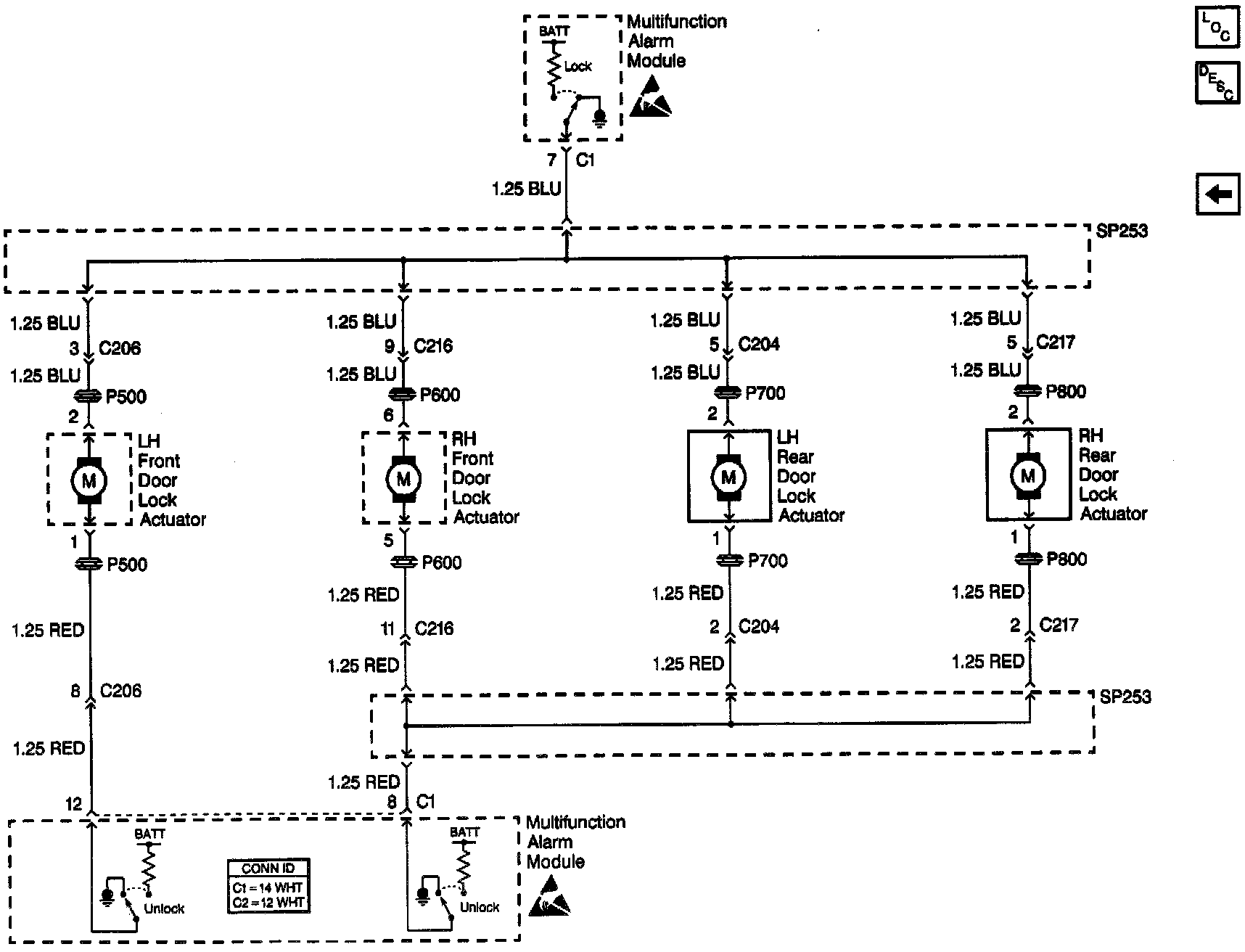

Keyless Entry Schematics: Multifunction Alarm And Door Lock Actuators:
