Compressor Replacement
Removal Procedure1. Disconnect the battery negative cable.
2. Discharge and recover the refrigerant.

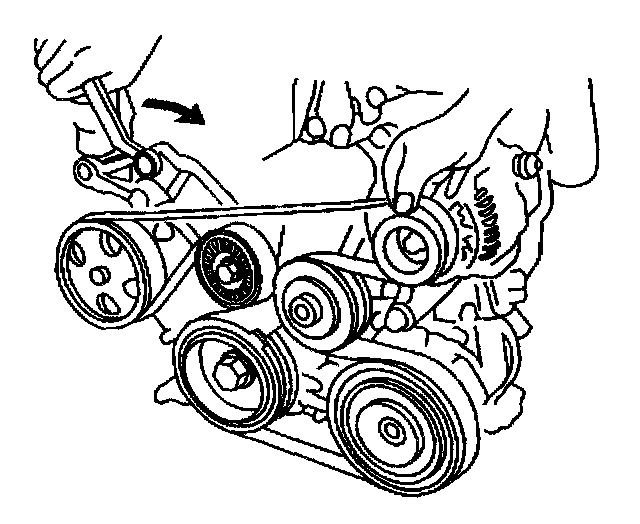

3. Loosen the drive belt tension by turning the tensioner clockwise.
4. Remove the compressor serpentine drive belt.

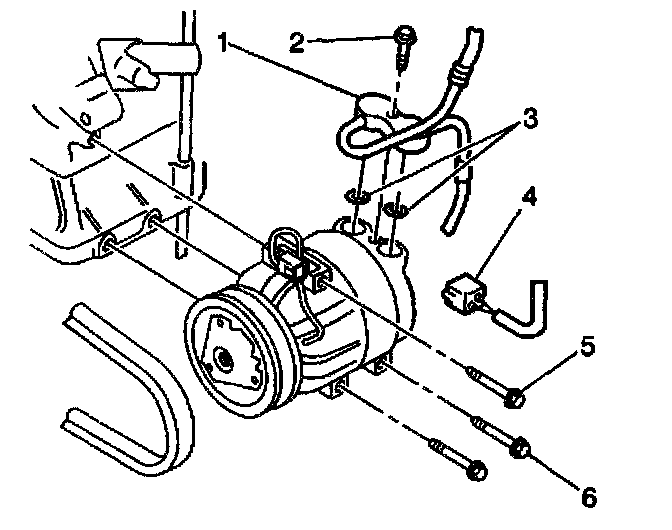

5. Disconnect the compressor clutch electrical connector (4).
6. Remove the one bolt (2) and the compressor and condenser hose assembly (1) from the compressor.
Important: Cap the open fillings to prevent dirt and moisture from entering the refrigeration system.
7. Remove the compressor upper mounting bolt (5).
8. Raise and suitably support vehicle.
9. Remove the right side engine splash shield.
10. Remove the two compressor lower mounting bolts (6) and the compressor from the vehicle.
11. If the compressor is to be replaced, drain and measure the amount of oil in the compressor.
Installation Procedure
Important: When installing a new compressor, add 59 cc (2.0 fl oz) of refrigerant oil to the refrigeration system, plus the amount drained from the old compressor.

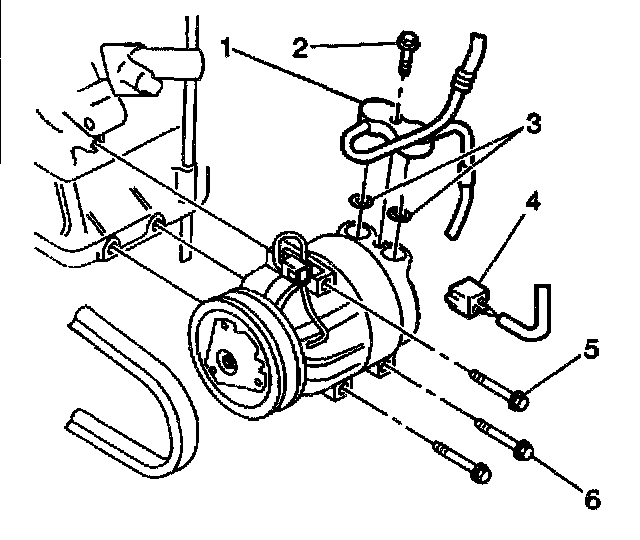

1. Install the compressor to the vehicle. Secure the compressor with the two lower mounting bolts (6).
Tighten
Tighten the compressor lower mounting bolts to 25 N.m (18 lb ft).
2. Install the right side engine splash shield.
3. Lower the vehicle.
4. Install the compressor upper mounting bolt (5).
Tighten
Tighten the compressor upper mounting bolt to 25 N.m (18 lb ft).
Important: Use new O-rings lubricated with 525 viscosity mineral oil.
5. Install the compressor and condenser hose assembly (1) to the compressor.
Tighten
Tighten the compressor and condenser hose assembly bolt (2) to 47 N.m (35 lb ft).
6. Connect the compressor clutch electrical connector (4).

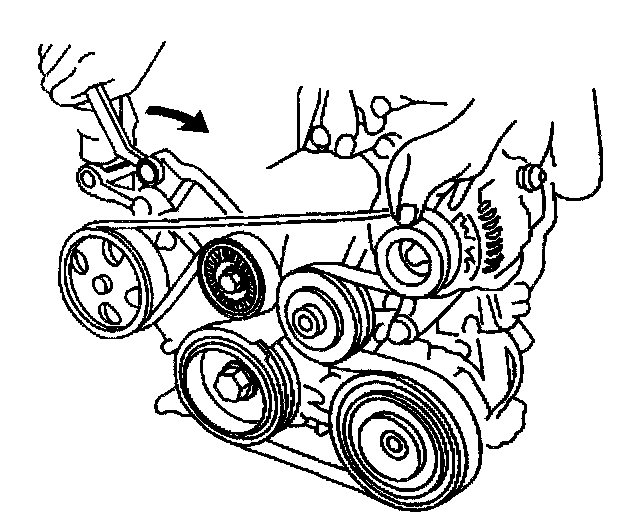

7. Install the compressor serpentine drive belt.
8. Connect the negative battery cable.
9. Evacuate and recharge the A/C system.
10. Operate and leak test the A/C system.
