Instrument Panel Ventilation Outlets
REMOVAL PROCEDUREAir Outlet Replacement: Left - Removal Procedure:
1. Remove the I/P drivers knee bolster reinforcement.

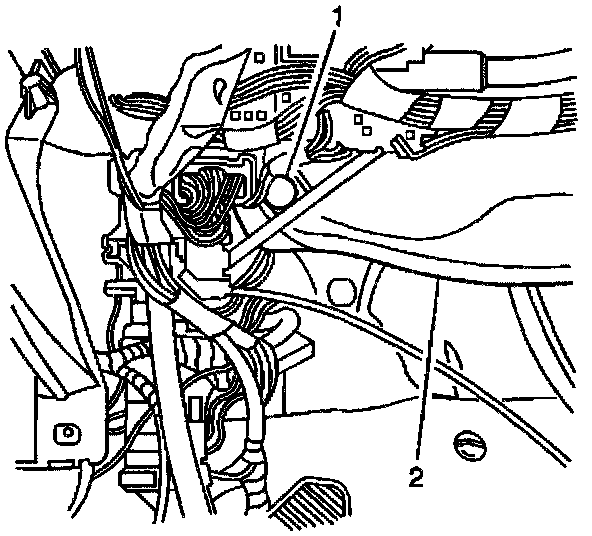

2. Remove the following components from the I/P assembly:
^ The plastic retainer (1)
^ The left I/P outer air outlet duct (2)
Air Outlet Replacement: Left - Removal Procedure:

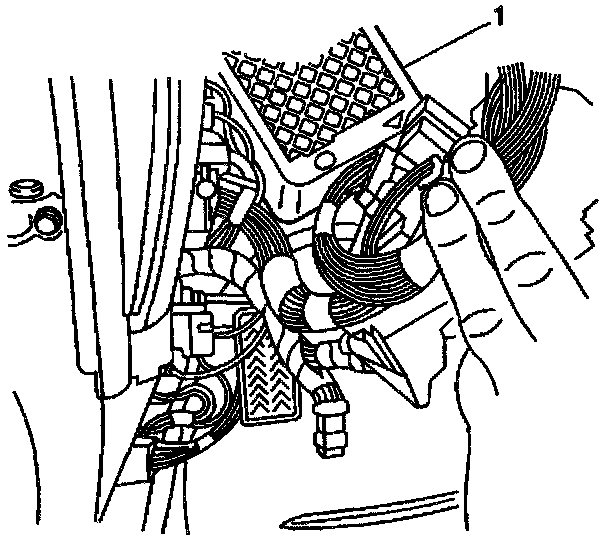

3. Remove the screw and the left I/P outer air outlet (1) from the I/P assembly.
Installation Procedure
Air Outlet Replacement: Left - Removal Procedure:
1. Install the left I/P outer air outlet (1) to the I/P. Secure the outlet with the screw.
2. Install the left I/P outer air outlet duct (2) to the I/P. Secure the outlet duct with the plastic retainer (1).
3. Install the I/P drivers knee bolster reinforcement.
