Prizm L4-108 1.8L DOHC VIN 8 MFI
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Electrical Diagrams
>>
Gages, Speedometer and Low Fuel Indicator
Gages, Speedometer and Low Fuel Indicator

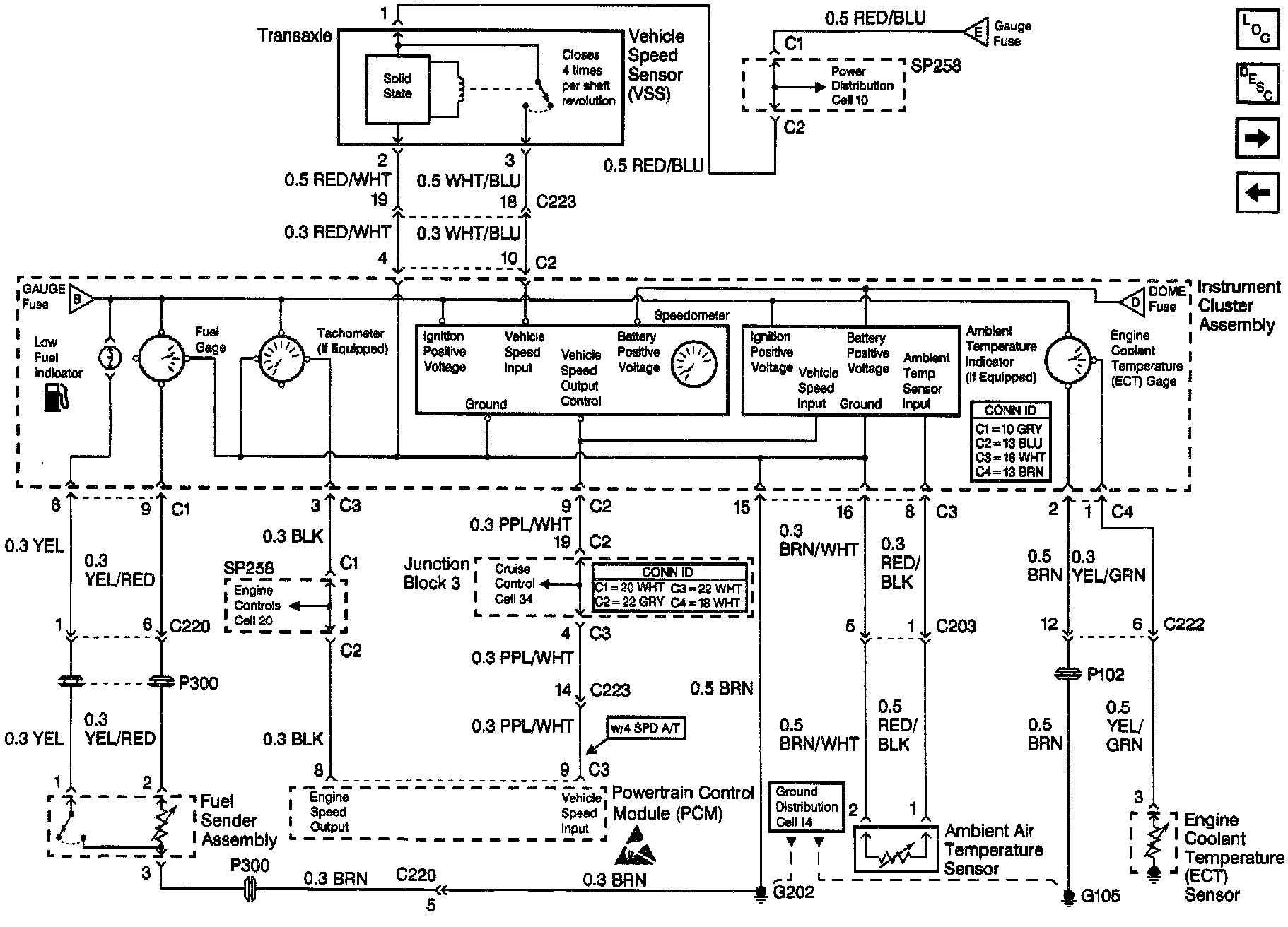

Instrument Cluster: Analog Schematics - Gages, Speedometer And Low Fuel Indicator:
