Instrument Panel Cluster Replacement

REMOVAL PROCEDURE

IMPORTANT: The ignition switch must be in the OFF position when removing the instrument cluster assembly.




1. Remove the IP cluster trim plate.

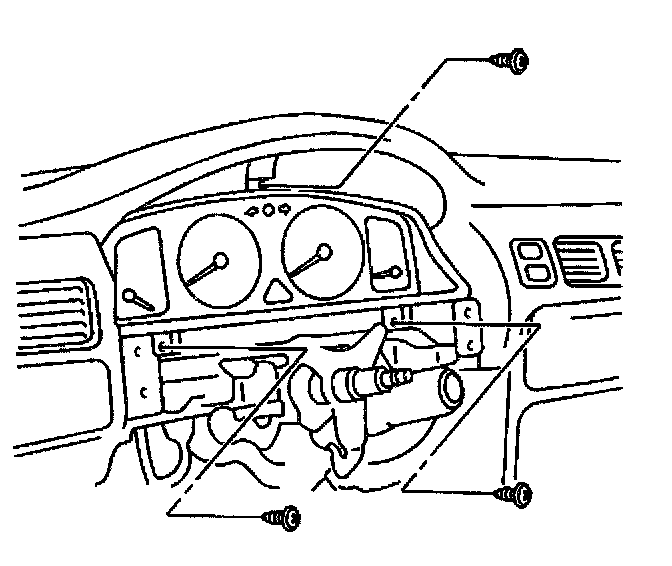

2. Remove the three screws that secure the instrument cluster assembly.

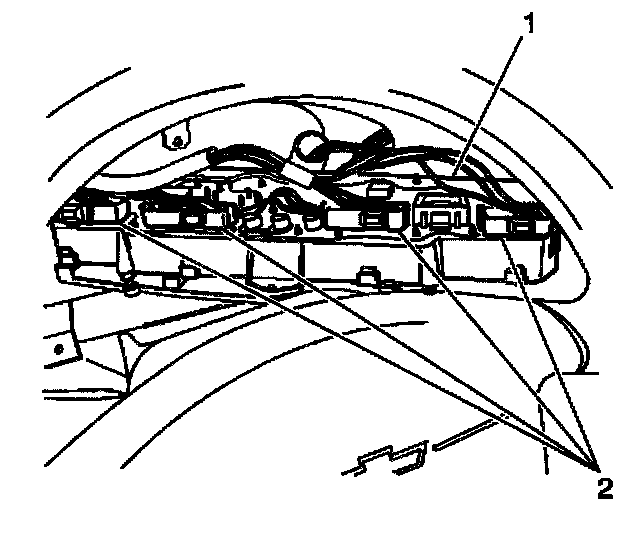

3. Disconnect the four electrical connectors (2) from the cluster assembly (1).
4. Remove the cluster assembly (1) from the IP assembly.

INSTALLATION PROCEDURE



1. Connect the four electrical connectors (2) to the instrument cluster assembly (1).




2. Install the cluster assembly to the IP assembly. Secure the assembly with the three screws.
3. Install the IP cluster trim plate.
