Instrument Panel Cluster Trim Plate Replacement

REMOVAL PROCEDURE

Trim Panel Replacement: IP Cluster - Removal Procedure:

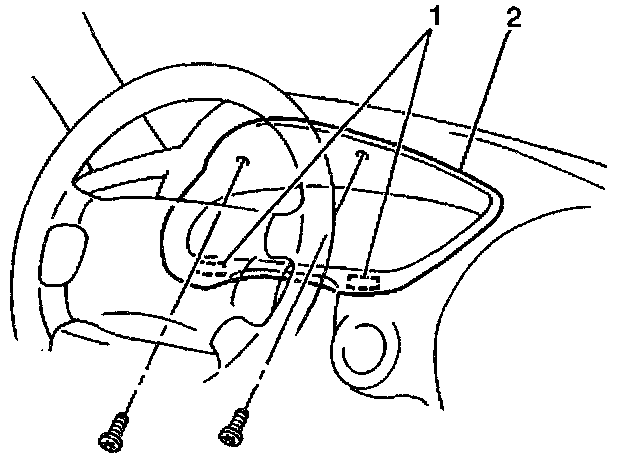

1. Remove the two screws that secure the IP cluster trim plate (2).
2. Disengage the two lower clips (1).
3. Remove the cluster trim plate (2) from the IP assembly.

INSTALLATION PROCEDURE

Trim Panel Replacement: IP Cluster - Installation Procedure:

Install the IP cluster trim plate (2) by pressing into place until fully seated. Secure the trim plate with the two screws.
