Air Cleaner Housing: Service and Repair
Air Cleaner Assembly ReplacementRemoval Procedure

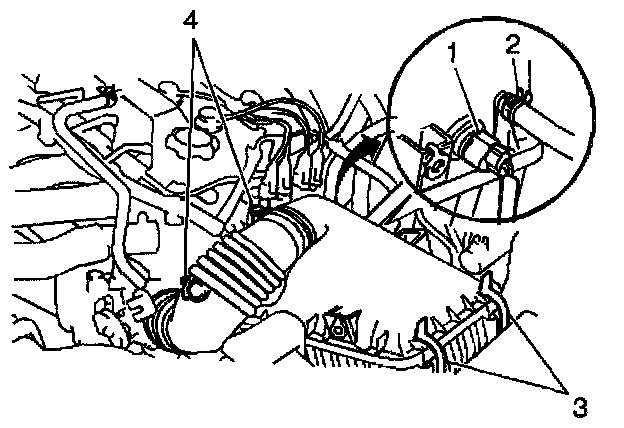

1. Disconnect the IAT electrical connector (1).
2. Remove the air hose (2) from the air cleaner cover.
3. Remove the accelerator cable from the accelerator cable guide clip (attached to the air cleaner cover).
4. Loosen the two air inlet duct clamps (4).
5. Release the two air cleaner cover hold down clips (3).
6. Remove the air cleaner cover (1).
7. Remove the air inlet duct (4).
8. Remove the air filter (2).
9. Remove the three bolts from the air cleaner case.
10. Remove the air cleaner case from the vehicle (3).
Installation Procedure
1. Install the air cleaner case to the vehicle (3).
2. Secure the air cleaner case to the vehicle with three bolts.
3. Install the air filter (2) to the air cleaner case (1).
4. Install the air inlet duct (4).
5. Install the air cleaner cover to the air cleaner case.
6. Fasten the two air cleaner cover hold down clips (3).
7. Tighten the two air inlet duct clamps (4).
8. Insert the accelerator cable into the accelerator cable guide clip (attached to the air cleaner cover).
9. Install the air hose (2) to the air cleaner cover.
10. Connect the IAT sensor electrical connector (1).
