Charging System

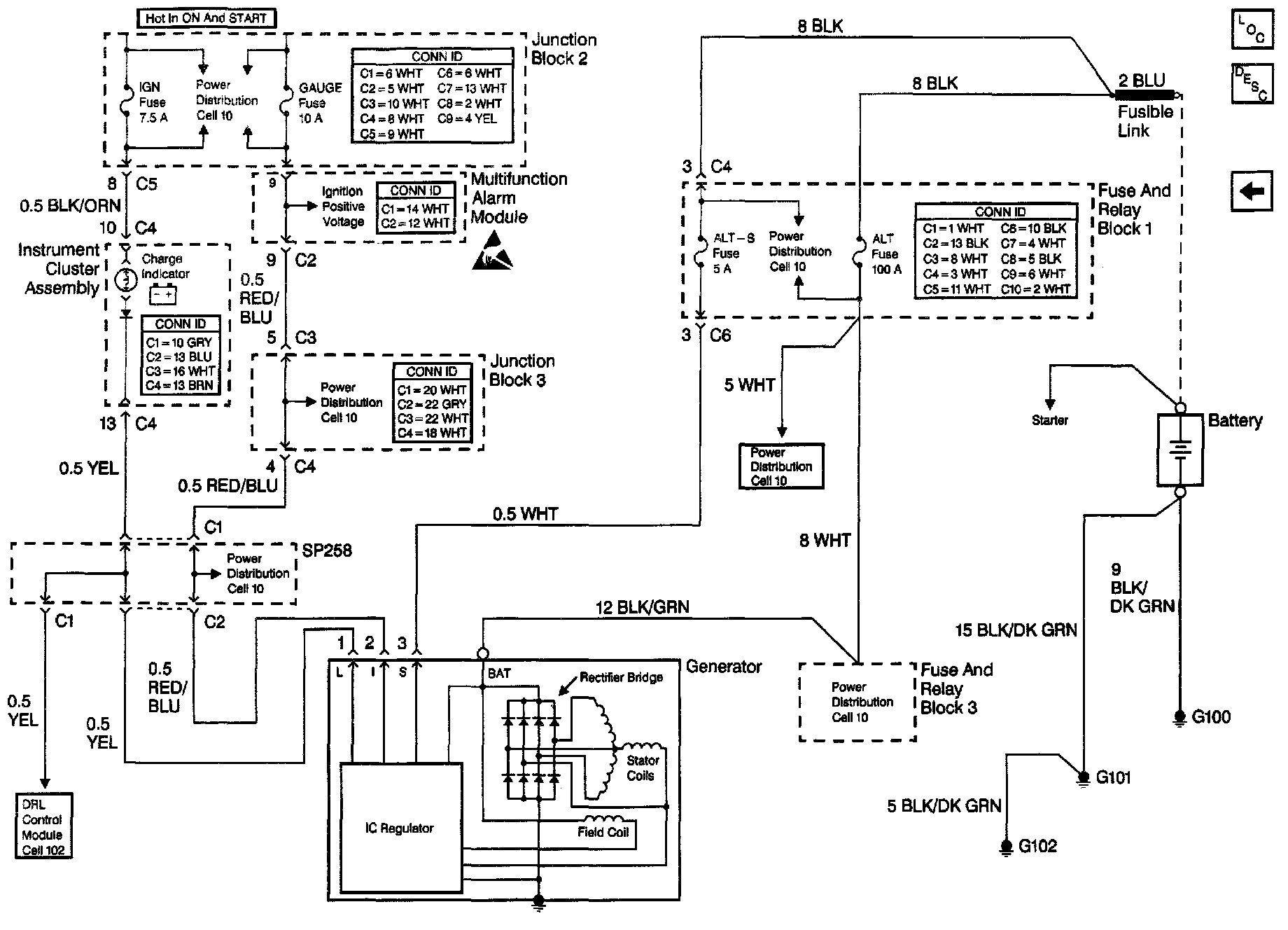

Charging System
Starting And Charging Schematics: Battery, CPP Switch, Fusible Link, Ignition Switch, ST Relay, And Starter:
