Battery Load Test

CAUTION: Wear a safety face shield when load testing a battery to prevent possible personal injury.

TOOLS REQUIRED
J 39200 Digital Multimeter





IMPORTANT: Do not load test a frozen battery.

1. Connect the J 39200 and a battery load tester (2) across the battery terminals.
2. Apply a 300 ampere load for 15 seconds in order to remove the surface charge from the battery (1).
3. Remove the load.
4. Wait for 15 seconds in order to let the battery recover.

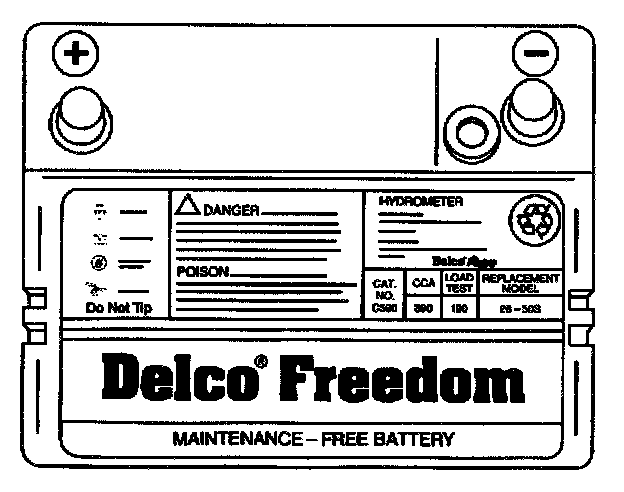

5. Apply the load specified on the battery label or half the cold cranking ampere rating to the battery.
6. Measure the battery voltage after 15 seconds.
7. Remove the load.

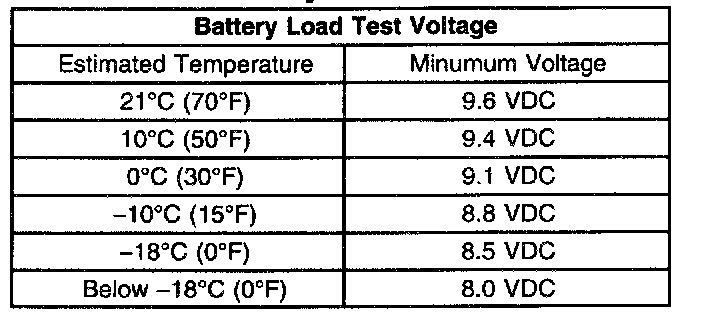

Battery Load Test:

8. If the voltage does not drop below the minimum voltage listed above, the battery is good. You may return the battery to service. (Estimate the battery temperature by feel and by the temperature the battery had been exposed to for the preceding few hours).
9. If the voltage drops below the minimum listed above, replace the battery.
