Window Guide Channel Replacement - Front Door (Rear)

REMOVAL PROCEDURE



1. Remove the front door window.
2. Pull the window run channel loose along the rear window guide.

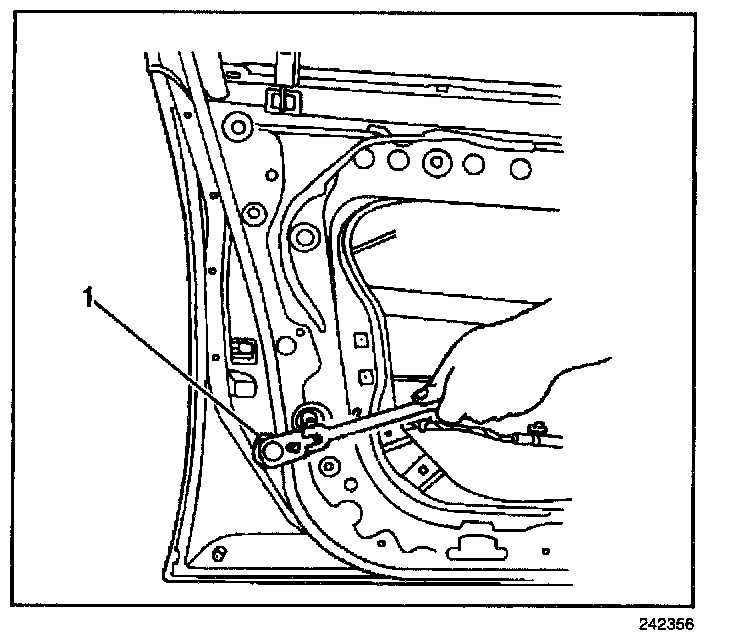

3. Remove the following components from the door:
^ The bolt (1)
^ The rear window guide

INSTALLATION PROCEDURE



1. Install the rear window guide to the door. Secure the guide with the bolt (1).

Tighten
Tighten the rear window guide bolt to 8 N.m (71 lb in).

2. Press the window run channel into place.
3. Install the front door window.
