Window Guide Channel Replacement - Rear Door(Center)

REMOVAL PROCEDURE

Window Guide Channel Replacement: Rear Door (Center) - Removal Procedure:

1. Remove the rear door trim panel.
2. Loosen the rubber window run channel along the center guide channel.
3. Remove the following components from the rear door:
^ The screw
^ The two bolts

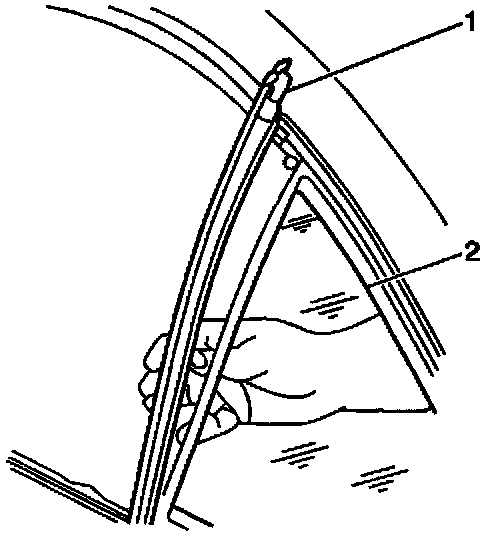

^ The center guide channel (1)

INSTALLATION PROCEDURE

Window Guide Channel Replacement: Rear Door (Center) - Removal Procedure:

1. Install the center guide channel (1) to the rear door. Secure the guide channel with the two bolts and the screw.

Tighten
Tighten the center guide channel bolts to 8 N.m (71 lb in).

2. Install the rubber window run channel into position.
3. Install the rear door trim.
