Window Replacement - Rear Door
REMOVAL PROCEDUREWindow Replacement: Rear Door - Removal Procedure:
1. Disconnect the negative battery cable, if equipped with power windows.
2. Remove the water deflector.
3. Remove the center guide channel from the rear door.
4. Disconnect the power window motor electrical connector, if equipped.
5. Remove 4 bolts from the regulator.
6. Slide the regulator arm roller (2) out of the window bottom channel (I).
7. Lift and remove the window from the rear door.
INSTALLATION PROCEDURE
IMPORTANT: Before installing the window into the door, check to see that the bottom channel is securely attached to the window. If the channel is loose, note the location of the channel on the window and then remove the channel from the window. Clean all remaining adhesive from the channel. Apply a bead of Automix Channel Bonding and Sidelite Adhesive, 3M P/N 08641, or equivalent, to the channel and install the channel onto the window. Refer to Manufacturer's Instructions for adhesive cure time.
1. Install the window to the rear door.

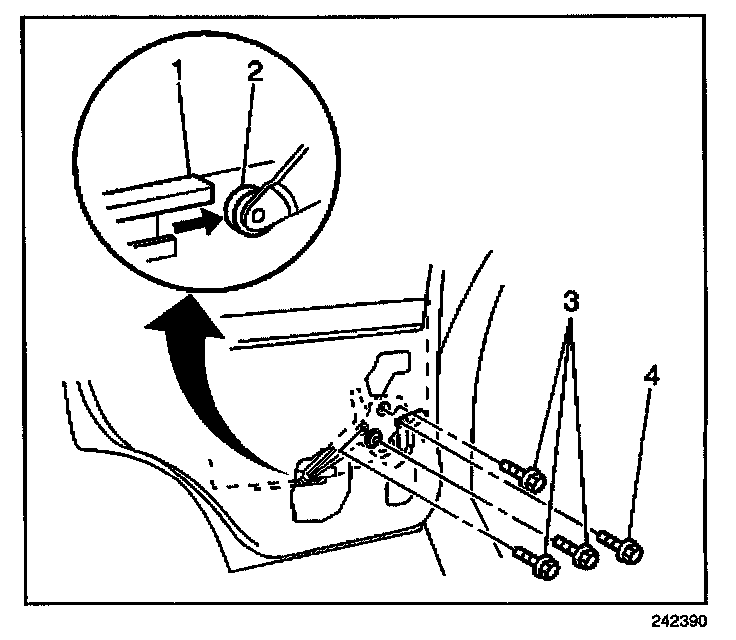

2. Slide the regulator arm roller (2) into the window bottom channel (1). Secure the regulator with 4 bolts.
Tighten
Tighten regulator bolts (3) to 5.5 N.m (49 lb in) and regulator bolt (4) to 5.0 N.m (43 lb in).
3. Connect the power window motor electrical connector, if equipped.
4. Install the center guide channel to the rear door.
5. Install the water deflector.
6. Connect the negative battery cable, if disconnected.
