Window Replacement - Rear Door (Stationary)

REMOVAL PROCEDURE



1. Remove the center guide channel.

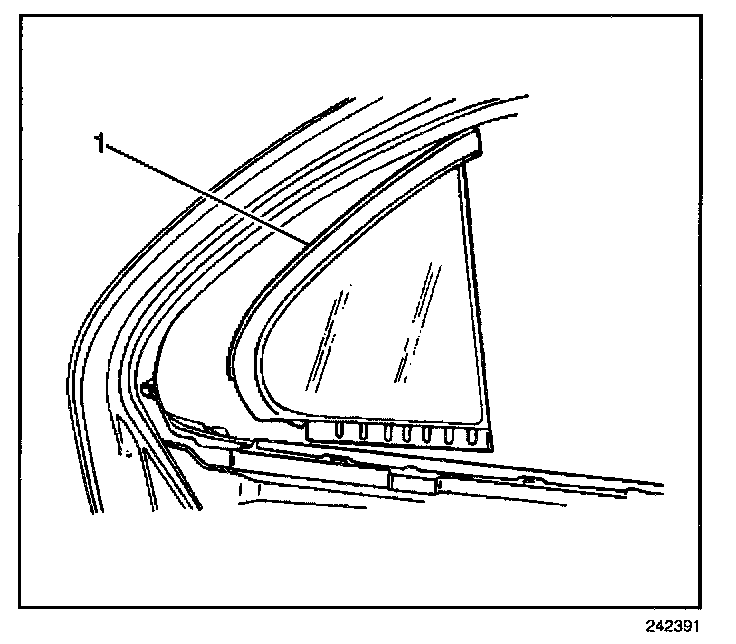

2. Slide the partition window (1) forward.
3. Remove the partition window from the door.

INSTALLATION PROCEDURE



1. Slide the partition window (1) into position.
2. Install the center guide channel.
