System Description

The windshield wiper system includes the following components:



^ The wiper arm
^ The wiper motor

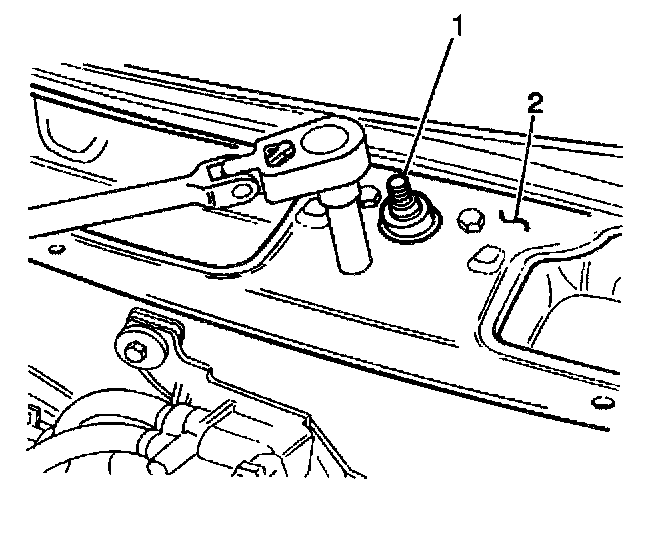

^ The wiper transmission (1)
^ The wiper blade

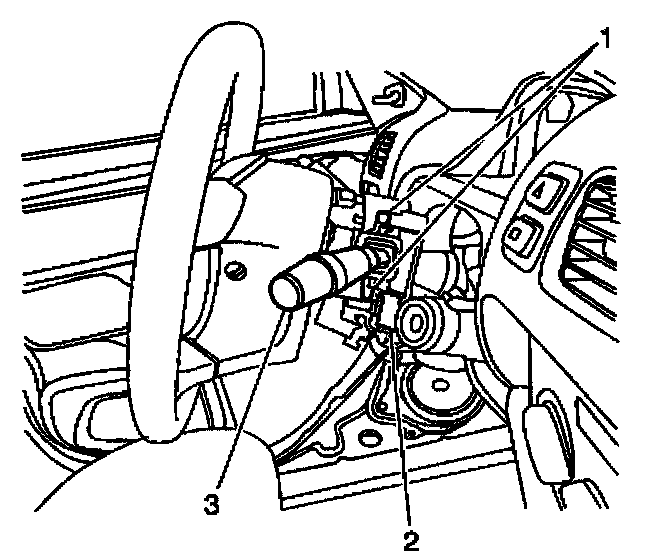

The wiper/washer switch (3) controls the wiper system. The switch is located on the right side of the steering column. Intermittent wipers are optional equipment on all of the models. The wiper circuit ensures that the wiper blades will automatically return to their final rest position when the wiper switch is OFF.
