Fog Lamp Replacement - Front

REMOVAL PROCEDURE



1. Remove the headlamp.

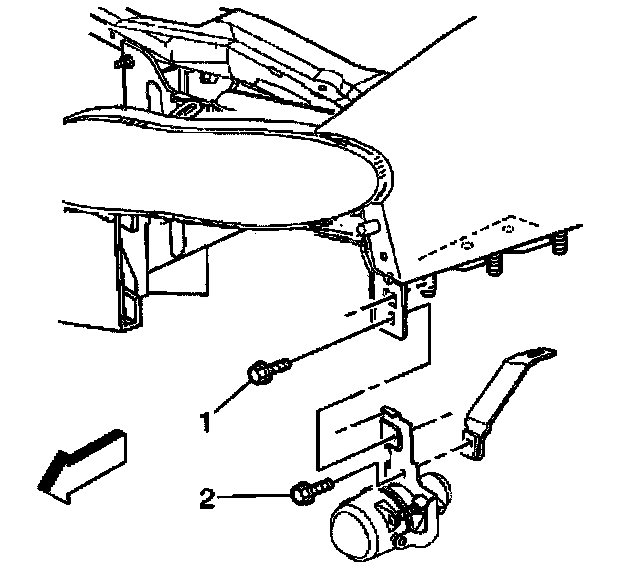

2. Loosen the front fender front reinforcement nut, if necessary.
3. Disconnect the electrical connector and bulb from the lamp socket.




4. Remove the fog lamp to headlamp bracket bolt (1).
5. Remove the fog lamp to fog lamp bracket bolt (2).
6. Remove the tog lamp from the vehicle.

INSTALLATION PROCEDURE



1. Install the fog lamp to the vehicle.

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the fog lamp to fog lamp bracket bolt (2).

Tighten
Tighten the fog lamp to fog lamp bracket bolt (2) to 10 N.m (89 lb in).

3. Install the fog lamp to headlamp bracket bolt (1).

Tighten
Tighten the fog lamp to headlamp bracket bolt (1) to 10 N.m (89 lb in).




4. Connect the electrical connector and the bulb to the lamp socket.
5. Tighten the front fender front reinforcement nut if necessary.

Tighten
Tighten the front fender front reinforcement nut to 10 N.m (89 lb in).

6. Install the headlamp.
