Turn Signal Lamp: Service and Repair

REMOVAL PROCEDURE



1. Raise and suitably support the vehicle.
2. Open the access door in the front bumper air deflector.
3. Disconnect the following connectors from the sockets:
^ The sidemarker lamp
^ The park and turn signal lamp

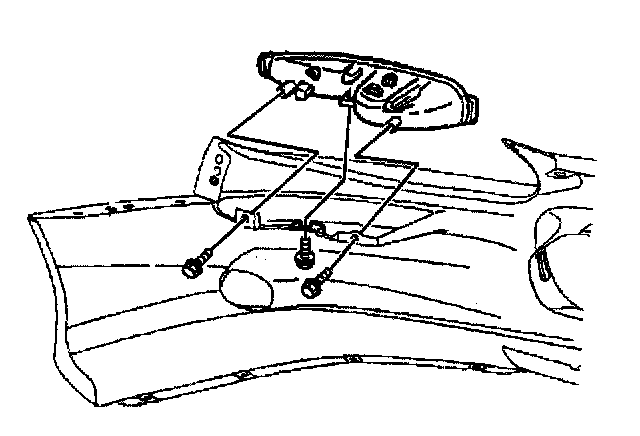

4. Remove the park and turn signal lamp bolts.
5. Remove the park and turn signal lamp from the front bumper fascia.

INSTALLATION PROCEDURE



1. Install the park and turn signal lamp to the front bumper fascia.

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the park and turn signal lamp bolts.

Tighten
Tighten the park and turn signal lamp bolts to 2.5 N.m (22 lb in).




3. Connect the following connectors to the sockets:
^ The sidemarker lamp
^ The park and turn signal lamp
4. Close the access door in the front bumper air deflector.
5. Lower the vehicle.
