Home
>>
Chevrolet
>>
1999
>>
Cavalier L4-144 2.4L DOHC VIN T SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Sensors
>>
Intake Air Temperature (IAT) Sensor

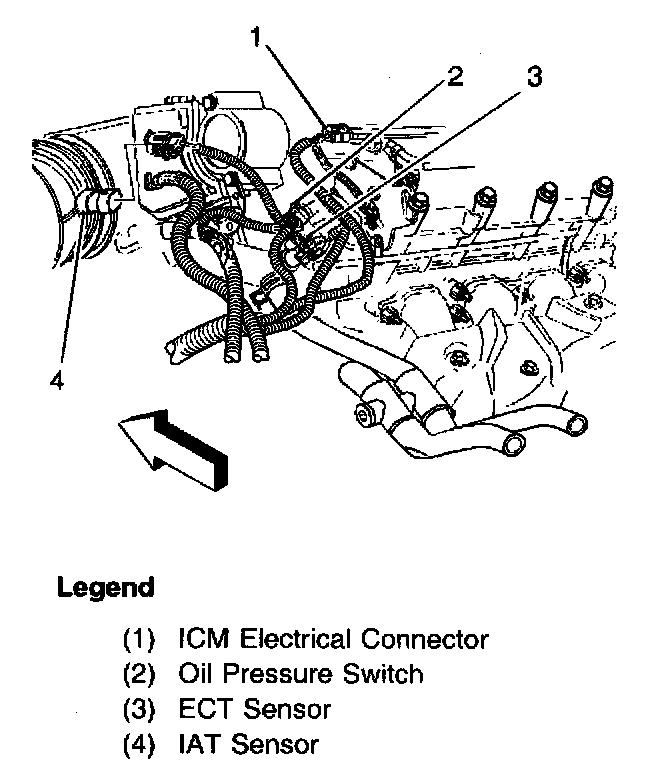

Intake Air Temperature (IAT) Sensor
Left Rear Of Engine (LD9):
Location View:
On the top left side of the engine compartment
