Fluid Pressure Sensor/Switch, A/T






4T40-E/4T45-E

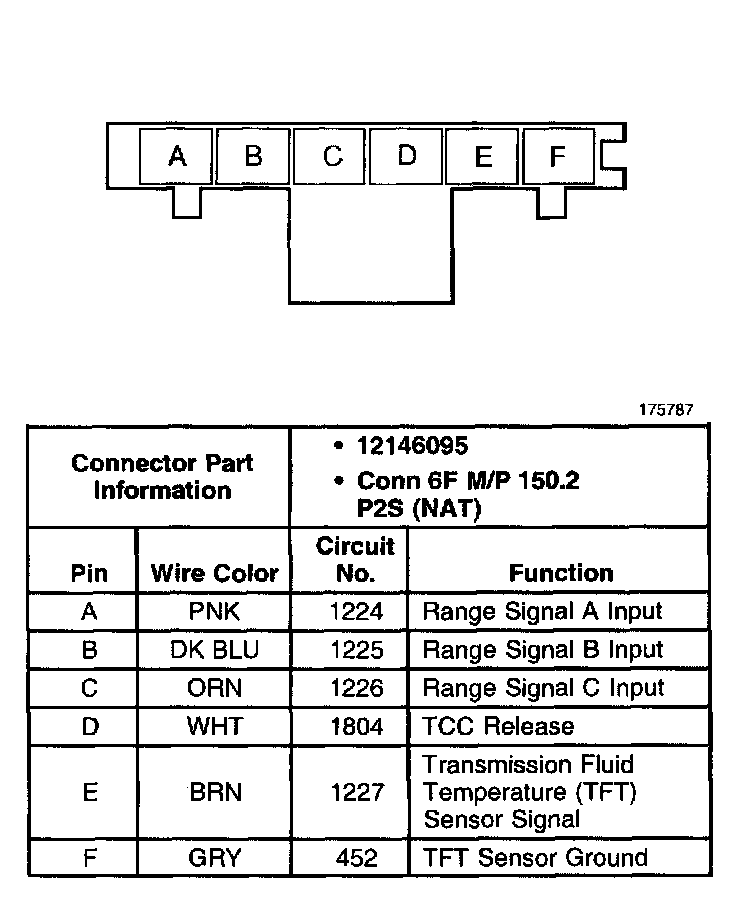

Automatic Transmission Fluid Pressure Manual Valve Position Switch Connector, Wiring Harness Side
