Center Mounted Brake Lamp
>>
High Mounted Stoplamp Assembly W/T43
High Mounted Stoplamp Assembly W/T43

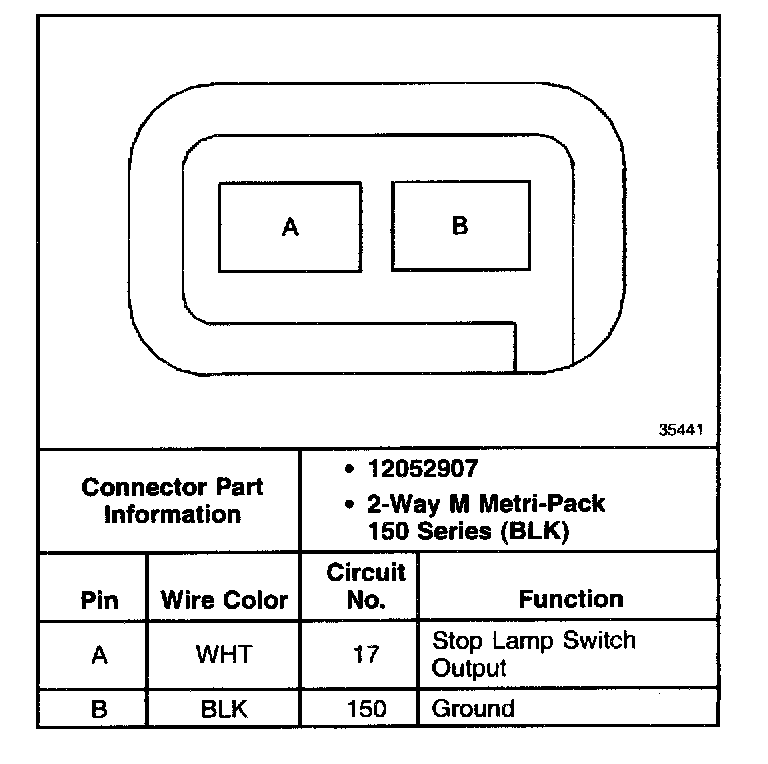

High Mounted Stoplamp Assembly W/T43:
