Home >> Chevrolet >> 1999 >> Cavalier L4-144 2.4L DOHC VIN T SFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors By Number >> C313

C313

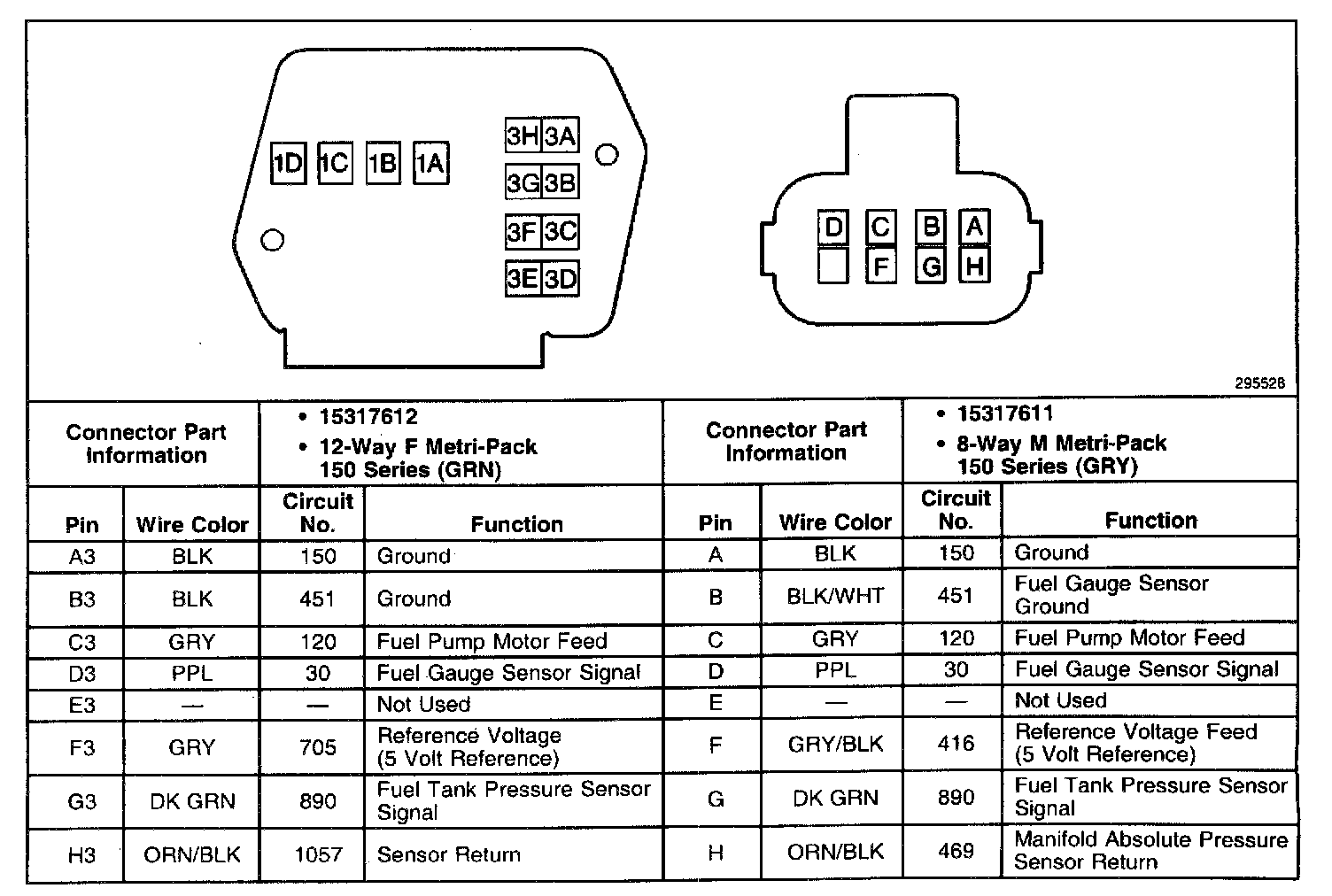

C313 (Part 1 Of 2):

C313 (Part 2 Of 2):
