Home >> Chevrolet >> 1999 >> Cavalier L4-144 2.4L DOHC VIN T SFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Convertible Top Switch >> Bypass Switch (Folding Top)

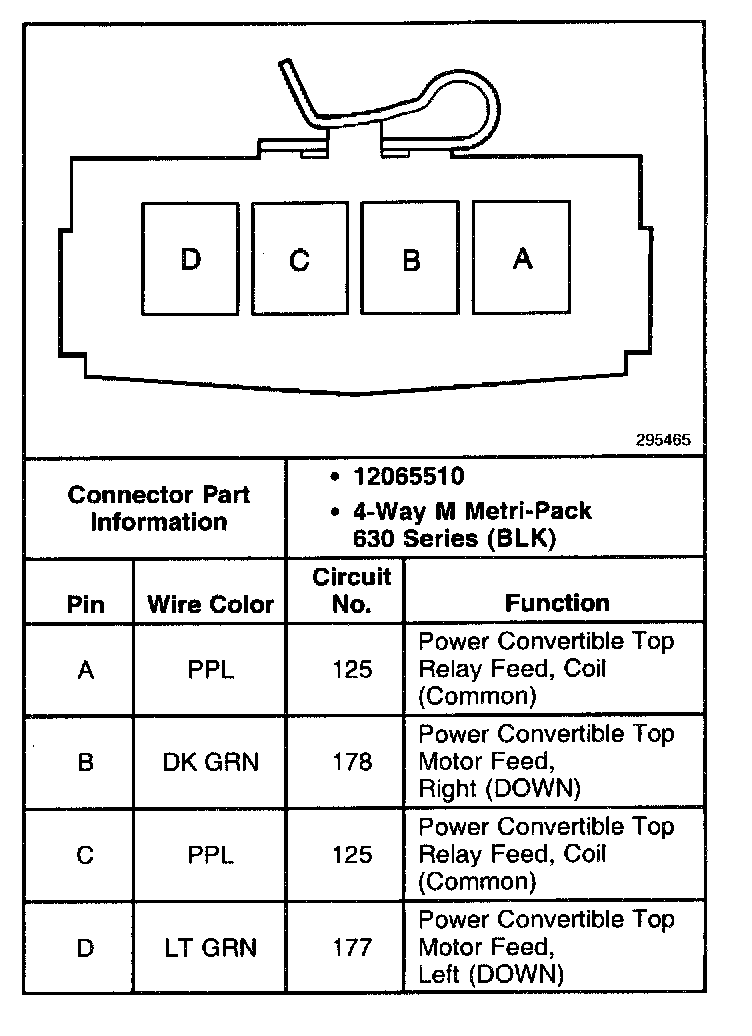

Bypass Switch (Folding Top)

Bypass Switch (Folding Top):
