Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1999
>>
Cavalier L4-144 2.4L DOHC VIN T SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Courtesy Lamp
>>
Courtesy/Reading Lamp Switch, Left

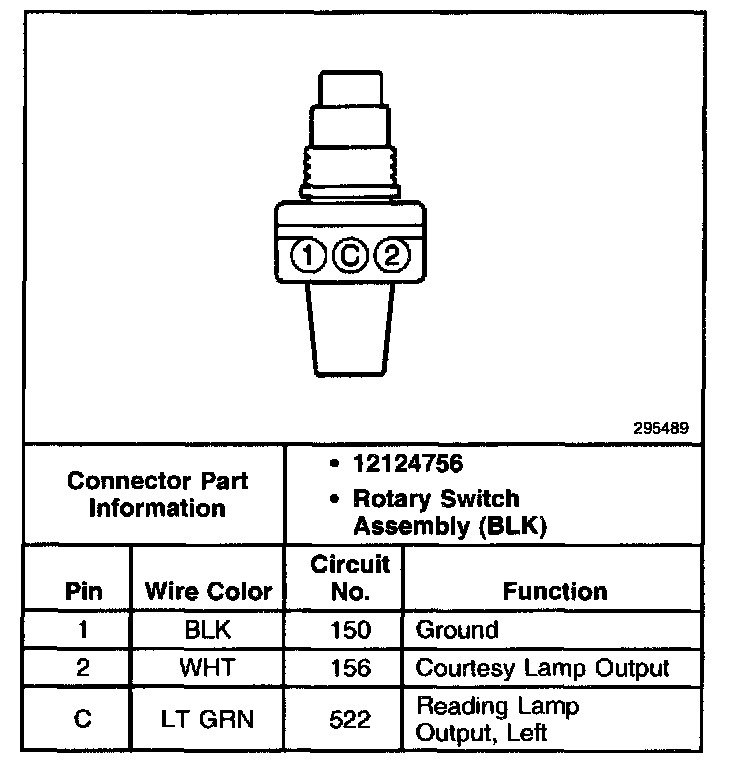

Courtesy/Reading Lamp Switch, Left
Courtesy/Reading Lamp Switch, Left:
