Home
>>
Chevrolet
>>
1999
>>
Cavalier L4-144 2.4L DOHC VIN T SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Turn Signal Switch
>>

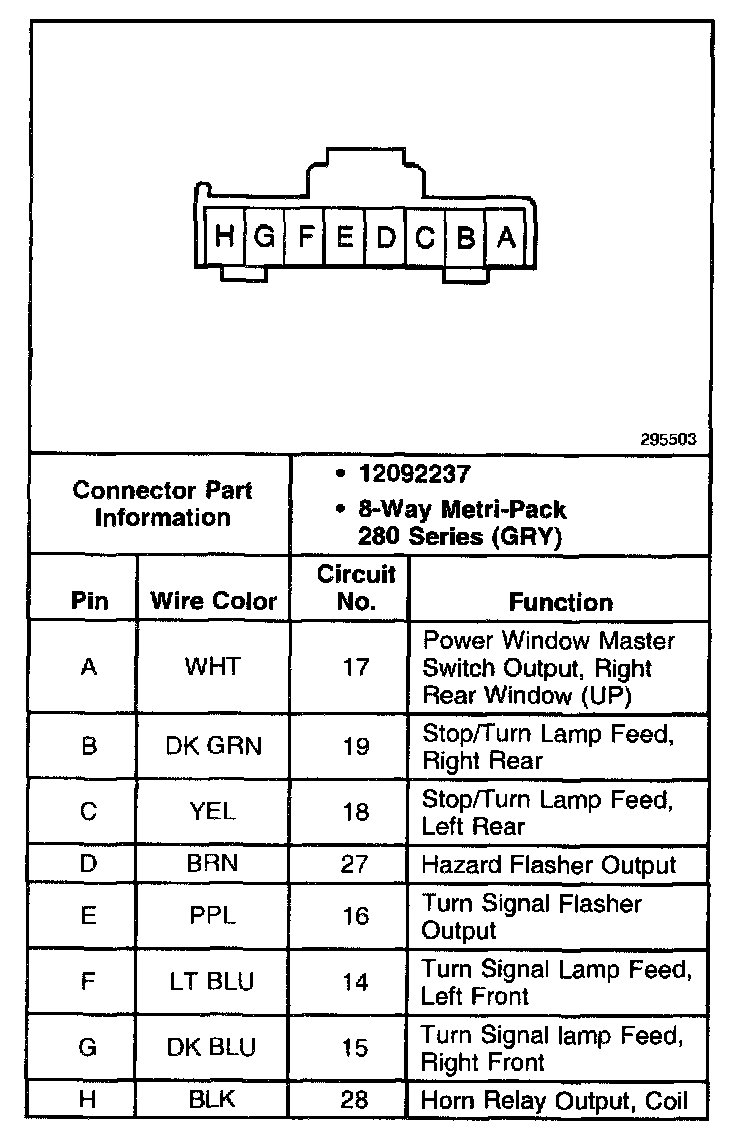

Turn/Hazard Headlamp Switch C2
Turn/Hazard Headlamp Switch C2
Turn/Hazard Headlamp Switch C2:
