Home >> Chevrolet >> 1999 >> Cavalier L4-144 2.4L DOHC VIN T SFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> Power Distribution Diagrams >> Schematics By Component Name >> Fuses >> IGN

IGN

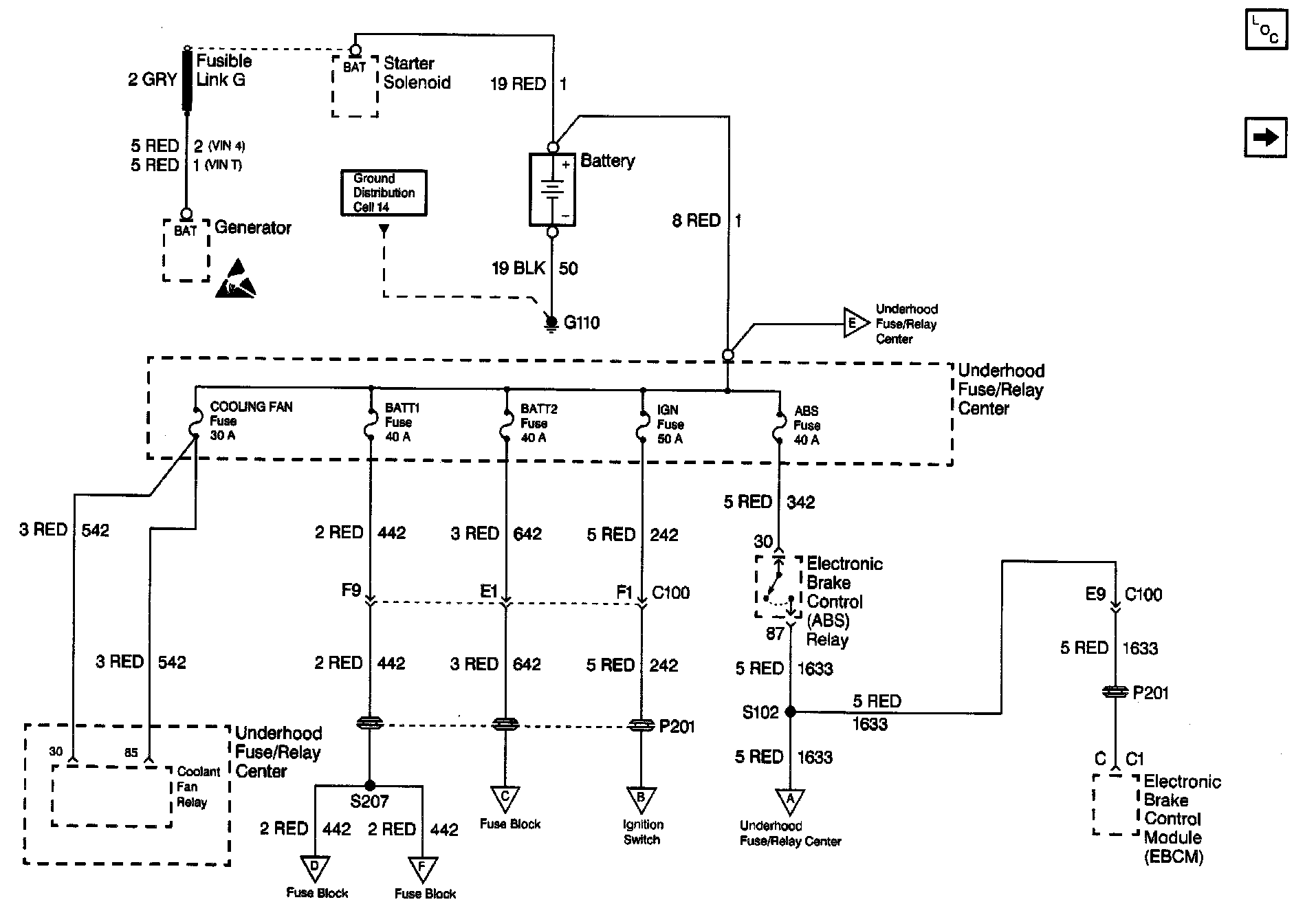

Power Distribution Schematics: Cooling Fan, BATT1, BATT2, IGN And ABS Fuses:



Power Distribution Schematics: Turn B/U, IGN, PCM/IGN And Alarm Fuses:
