Manual Transmission/Transaxle

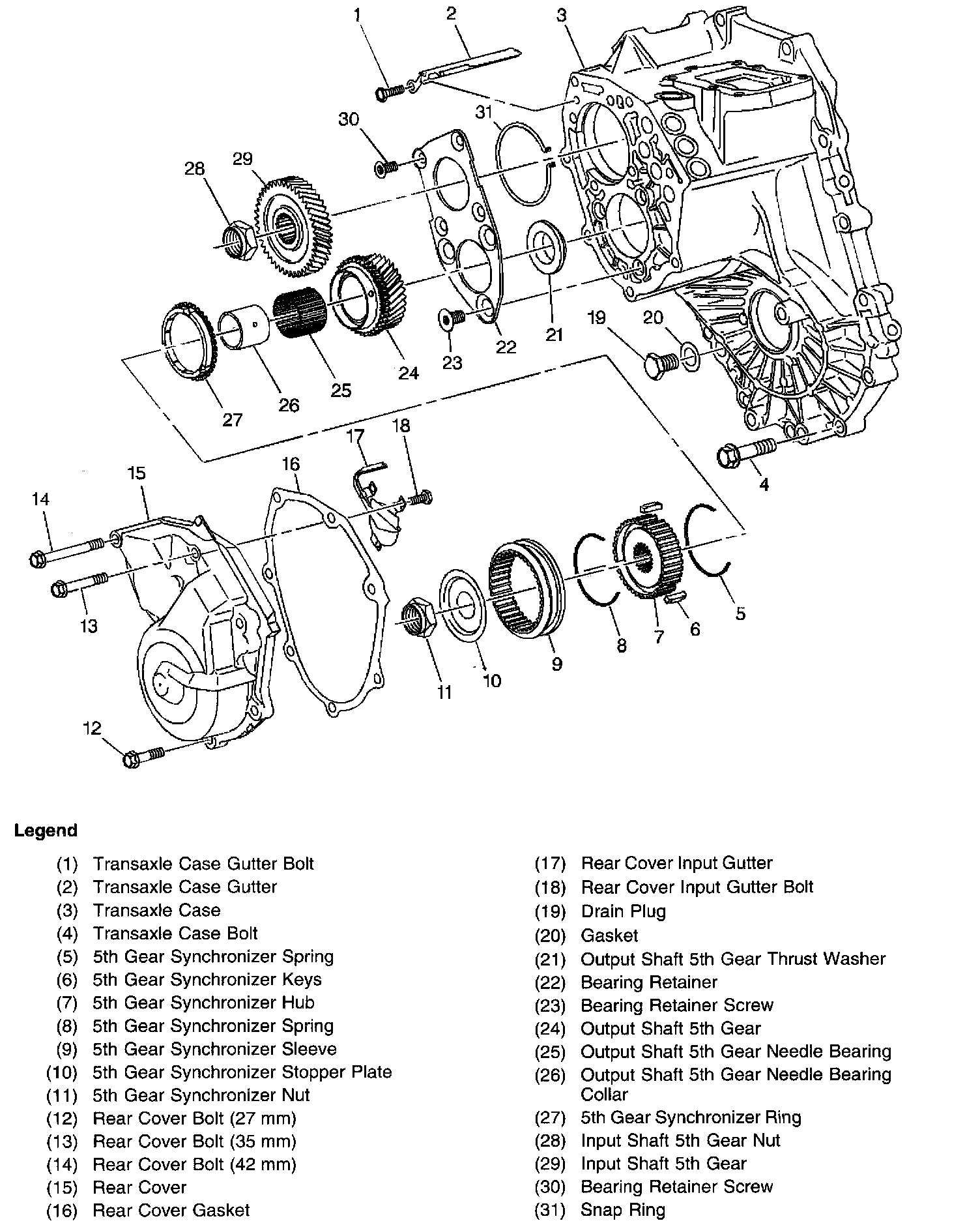

Manual Transaxle Case Components

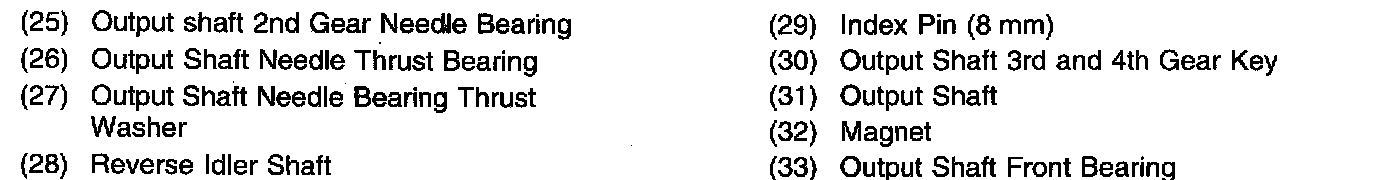

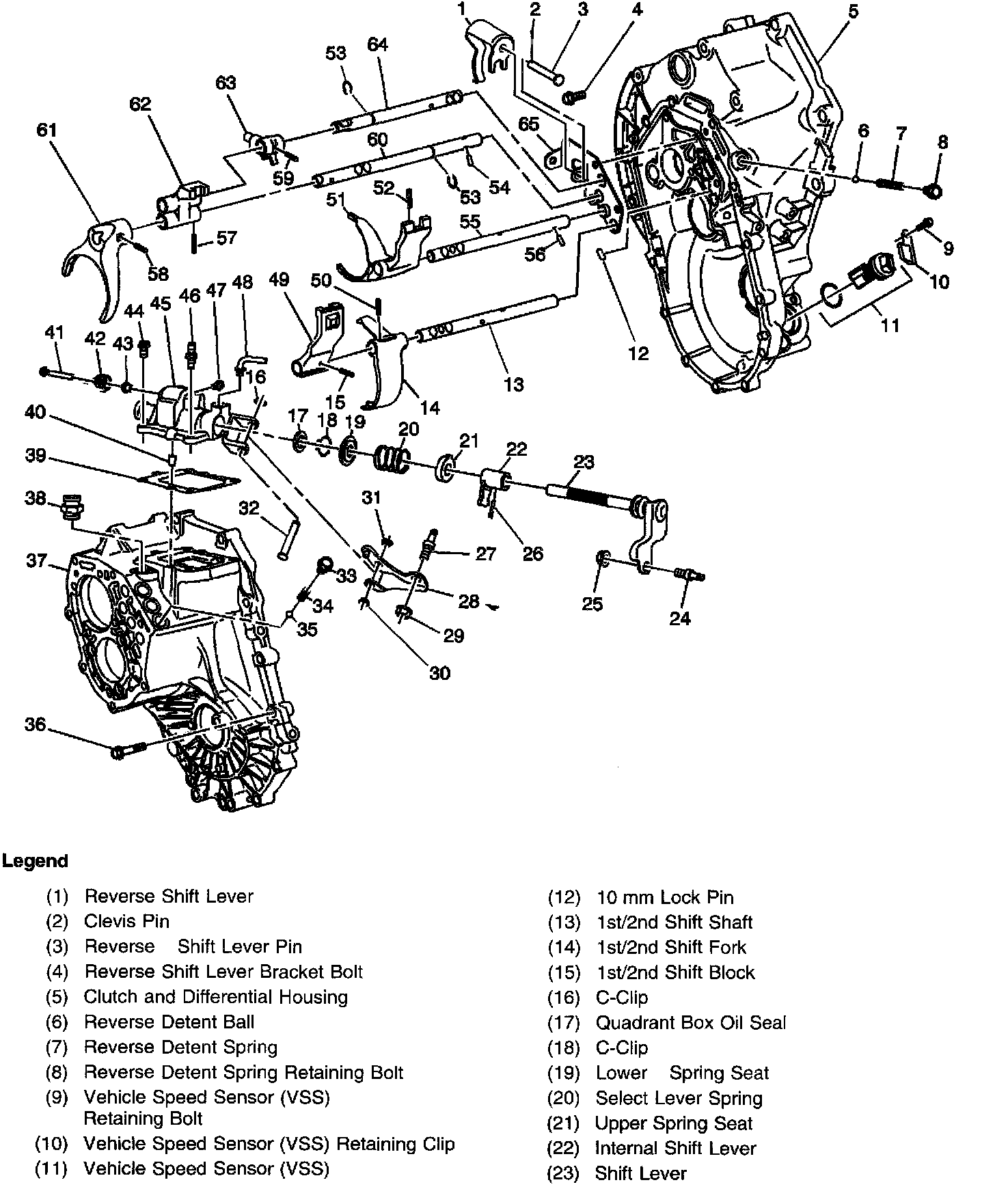

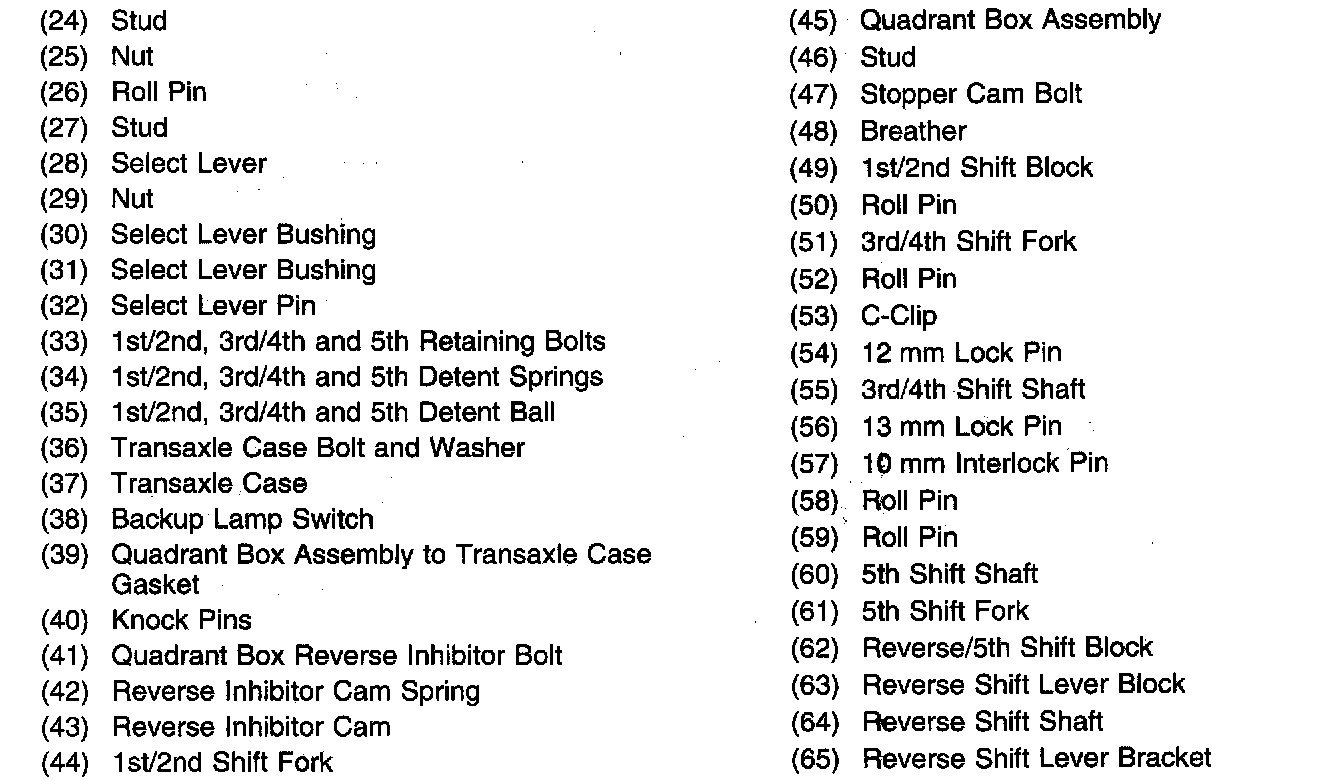

Transmission Internal Components (1 of 3)

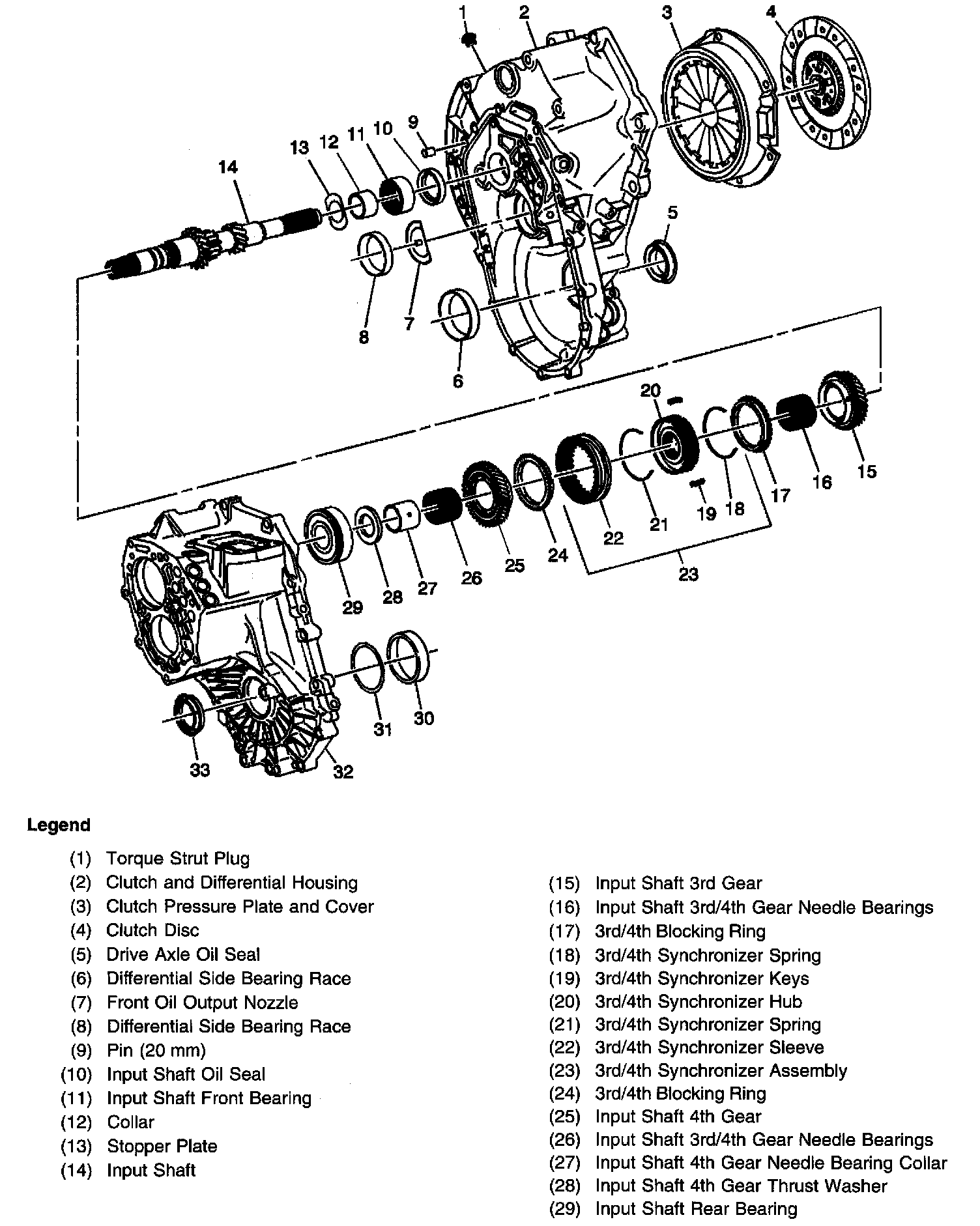

Transmission Internal Components (2 of 3)

Transmission Internal Components (3 of 3)

Differential Assembly Components
