Instrument Panel (IP) - Defroster Grille Replacement

REMOVAL PROCEDURE

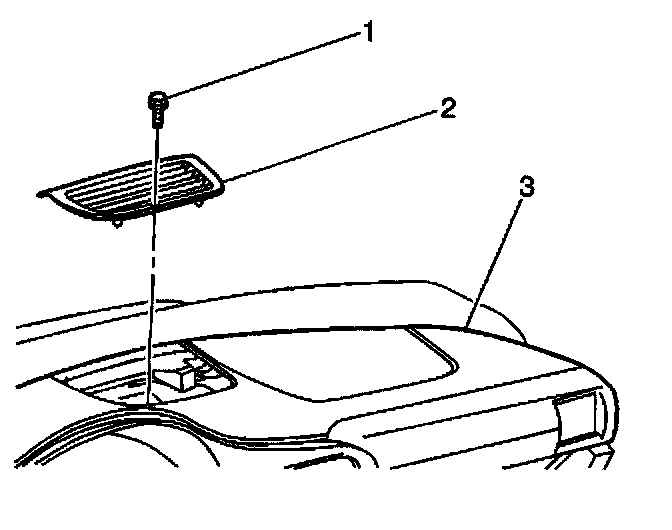

1. Remove the retaining screw (1) from the grille (2).
2. Remove the grille (2) from the instrument panel (3).

INSTALLATION PROCEDURE
1. Install the grille (2) to the instrument panel (3).
2. Install the retaining screw (1) to the grille (2).

Tighten
Tighten the screw to 2 N.m (18 lb in).
