Cavalier L4-144 2.4L DOHC VIN T SFI
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Cluster Indicators
Instrument Cluster Indicators

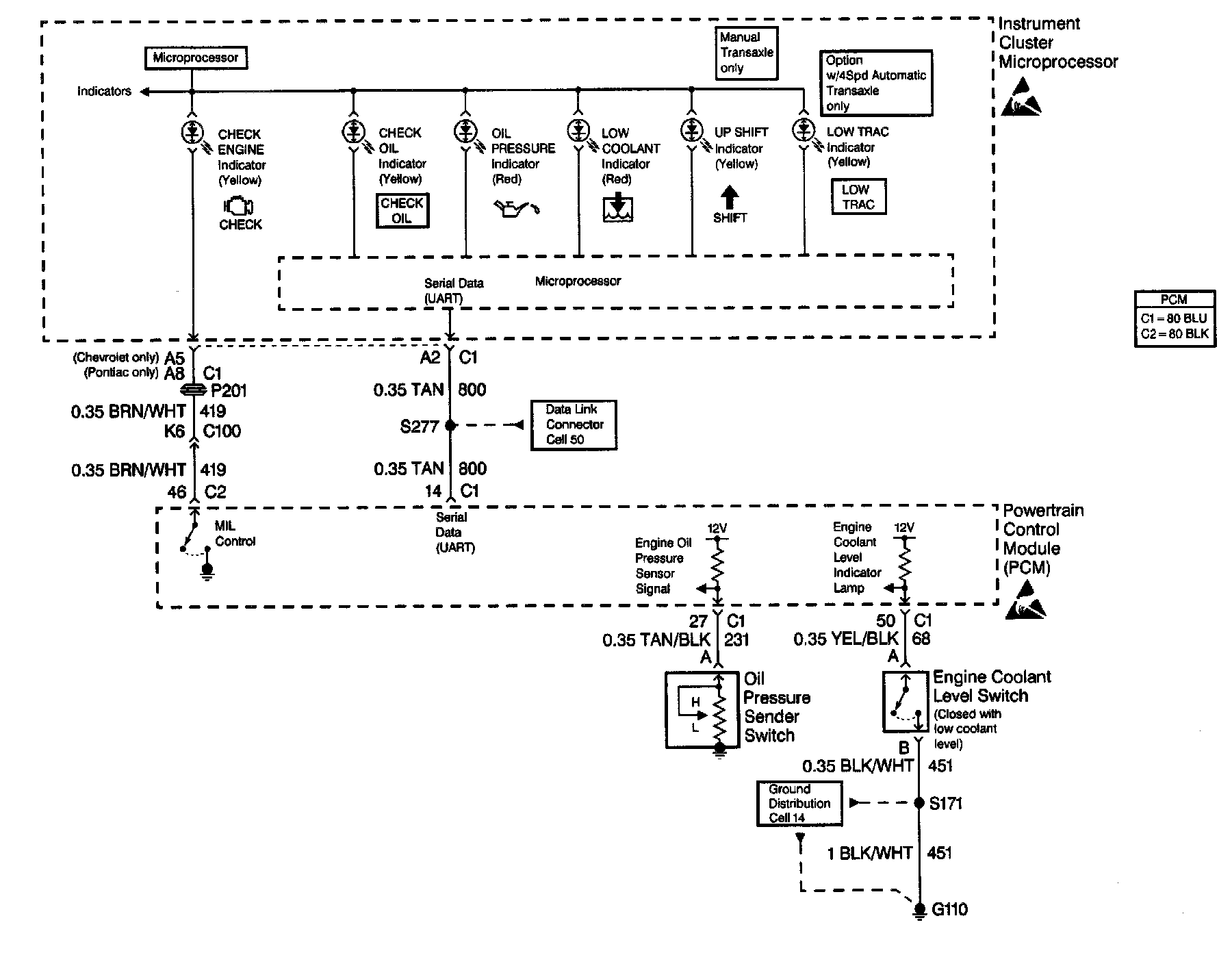

Instrument Cluster Digital Schematics: Instrument Cluster Indicators:
