Instrument Cluster Turn Signal Indicators & Warning Indicators
Instrument Cluster Turn Signal Indicators & Warning Indicators

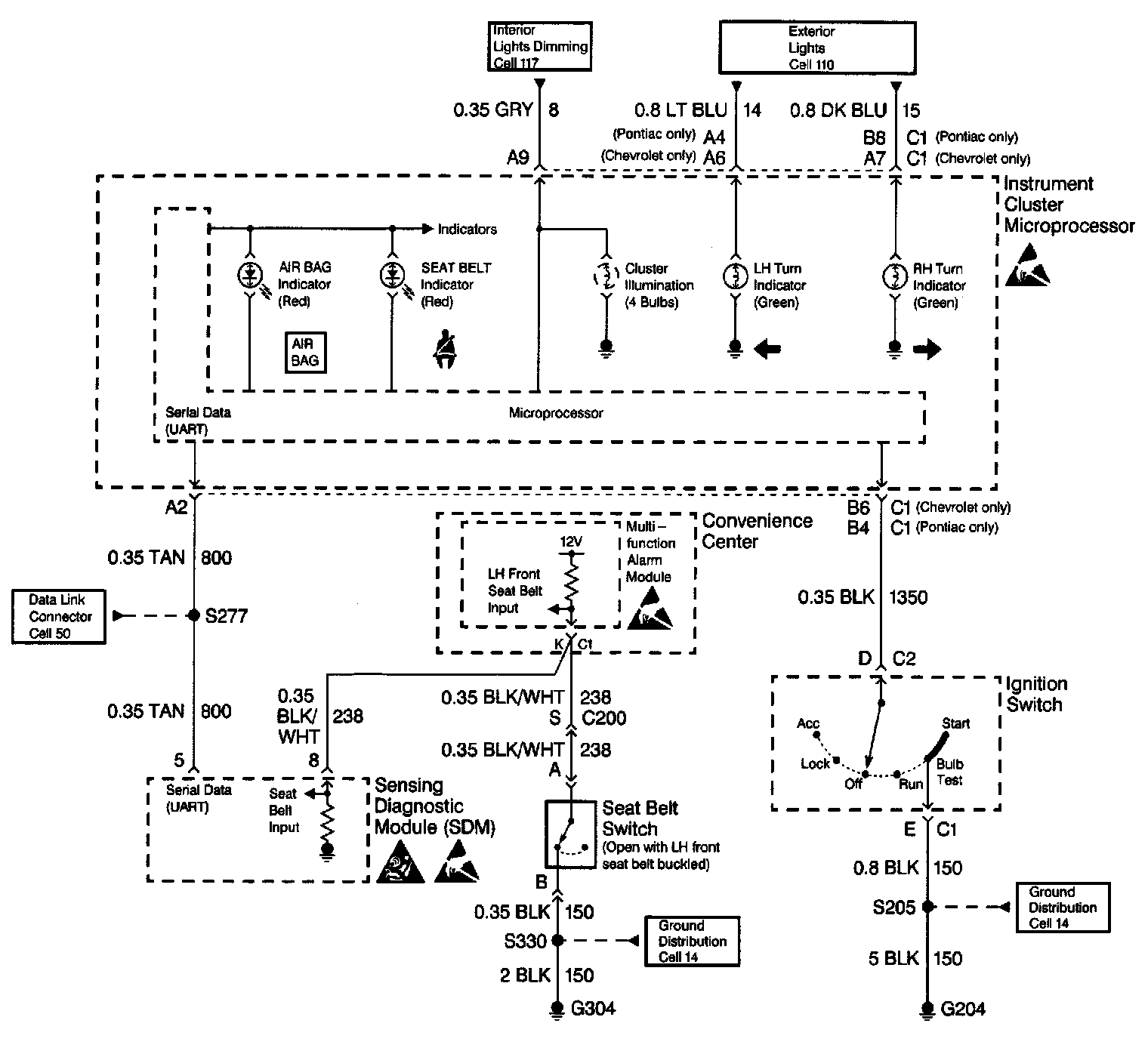

Instrument Cluster Digital Schematics: Instrument Cluster Turn Signal Indicators And Warning Indicators:
