Remote CD Changer Replacement

REMOVAL PROCEDURE



1. Remove the front floor kick-up panel.
2. Remove the cover from the I/P electrical center.
3. Remove the RDO/CD MiniFuse(R) #5 from the I/P electrical center.
4. Open the rear lift window panel.
5. Remove the center rear storage compartment cover.
6. Reposition the carpet in the center rear storage compartment to expose the base of the remote Compact Disc (CD) changer.

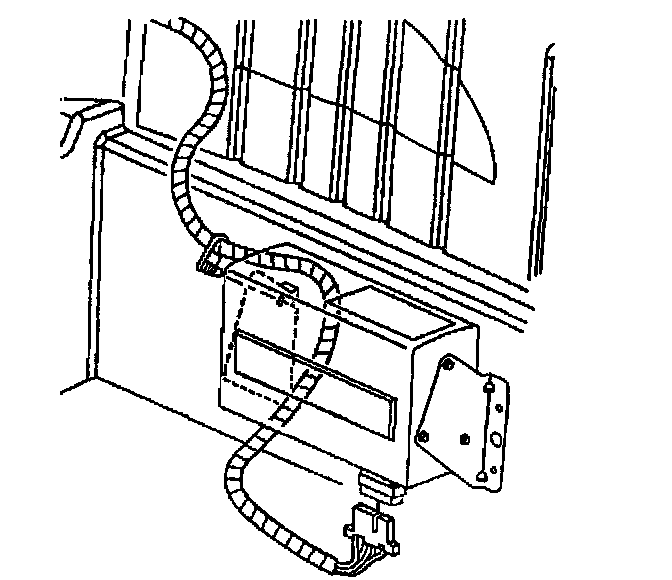

7. Disconnect the electrical/audio connector from the remote CD changer.

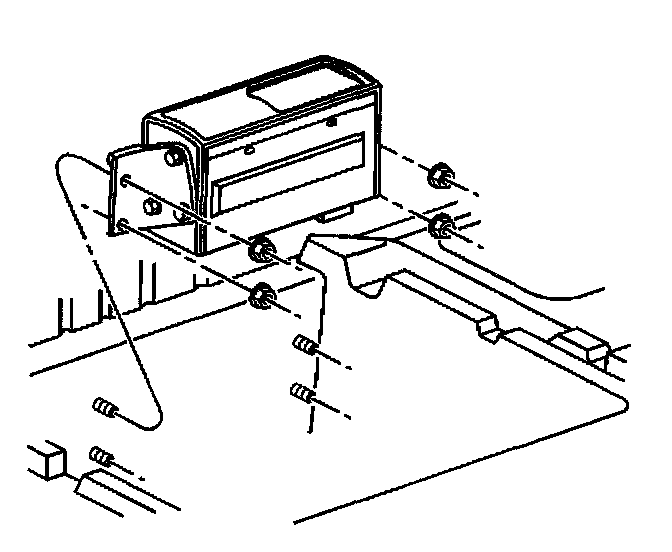

8. Remove the nuts mounting the remote CD changer to the center rear storage compartment rear wall.
9. Remove the remote CD changer from the vehicle.

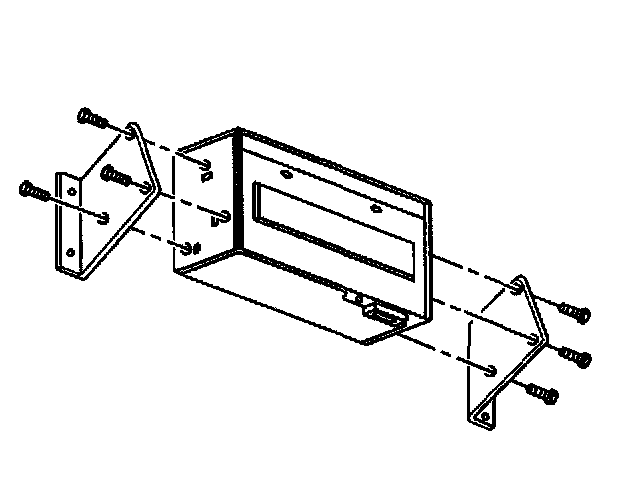

10. Remove the remote CD changer mounting bracket bolts.
11. Remove the mounting brackets from the remote CD changer.

IMPORTANT: Reinstall the transportation pin when shipping or transporting the remote CD changer.

12. If shipping or transporting the remote CD changer, reinstall the transportation pin by inserting into the original position and fixing in place with clear tape.

INSTALLATION PROCEDURE



1. Remove the transportation pin from the remote CD changer, if installed prior.
2. Install the mounting brackets to the remote CD changer.

NOTE: Refer to Fastener Notice in Cautions and Notices.

3. Install the remote CD changer mounting bracket bolts.

Tighten
Tighten the remote CD changer mounting bracket bolts to 1.9 N.m (17 lb in).





4. Position the remote CD changer to the studs on the center rear storage compartment rear wall.
5. Install the nuts mounting the remote CD changer to the rear compartment wall.

Tighten
Tighten the remote CD changer mounting nuts to 12 N.m (106 lb in).




6. Connect the electrical/audio connector to the remote CD changer.
7. Position the carpet in the center rear storage compartment to cover the base of the remote CD changer.
8. Install the center rear storage compartment cover.
9. Close the rear lift window panel.
10. Install the RDO/CD MiniFuse(R) #5 to the I/P electrical center.
11. Install the cover to the I/P electrical center.
12. Install the front floor kick-up panel.
