A/C Refrigerant Pressure Sensor
A/C Refrigerant Pressure Sensor

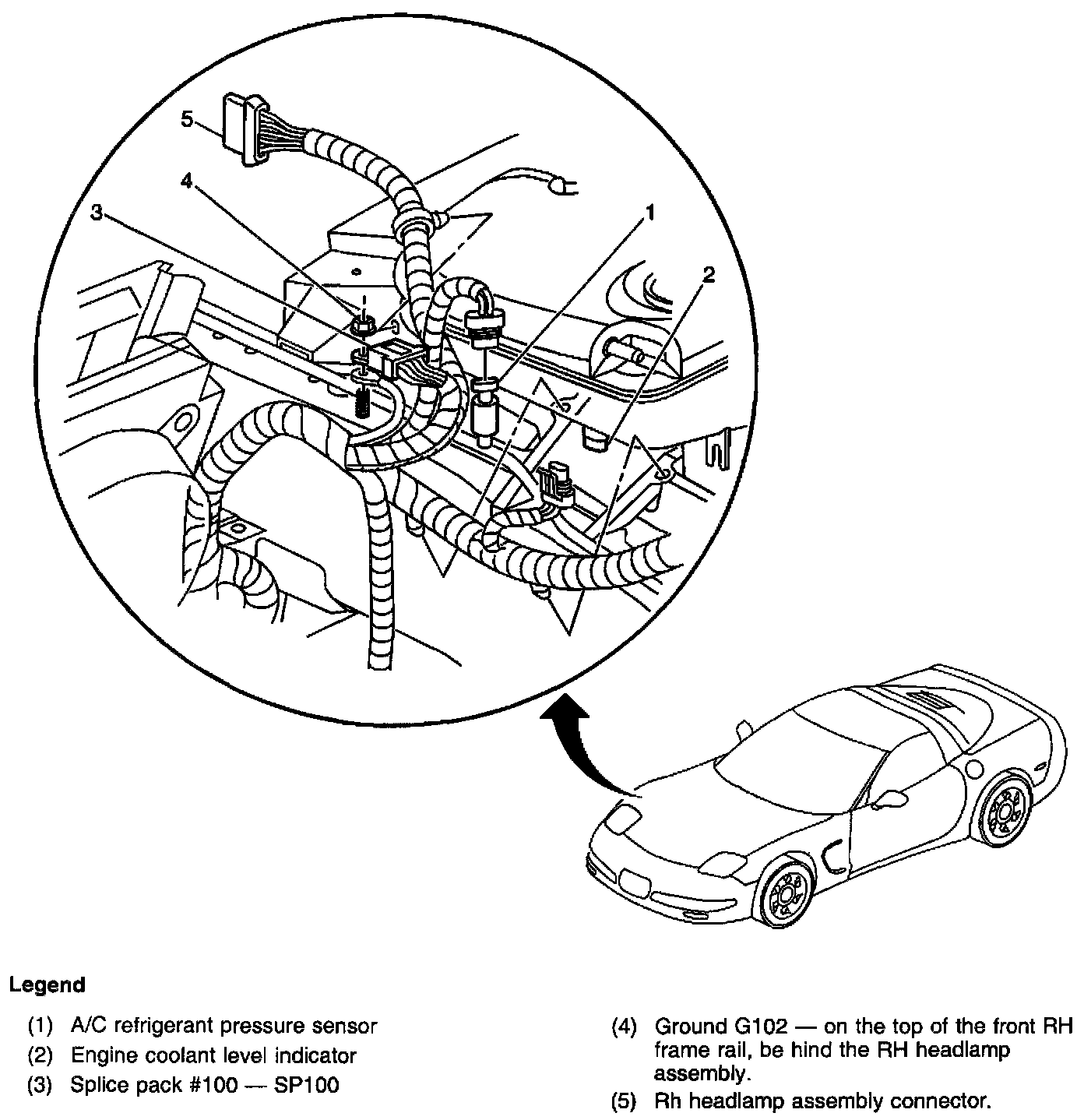

Engine Compartment Behind The RH Headlamp Assembly:
Attached to the A/C high side line
