HVAC System - Automatic

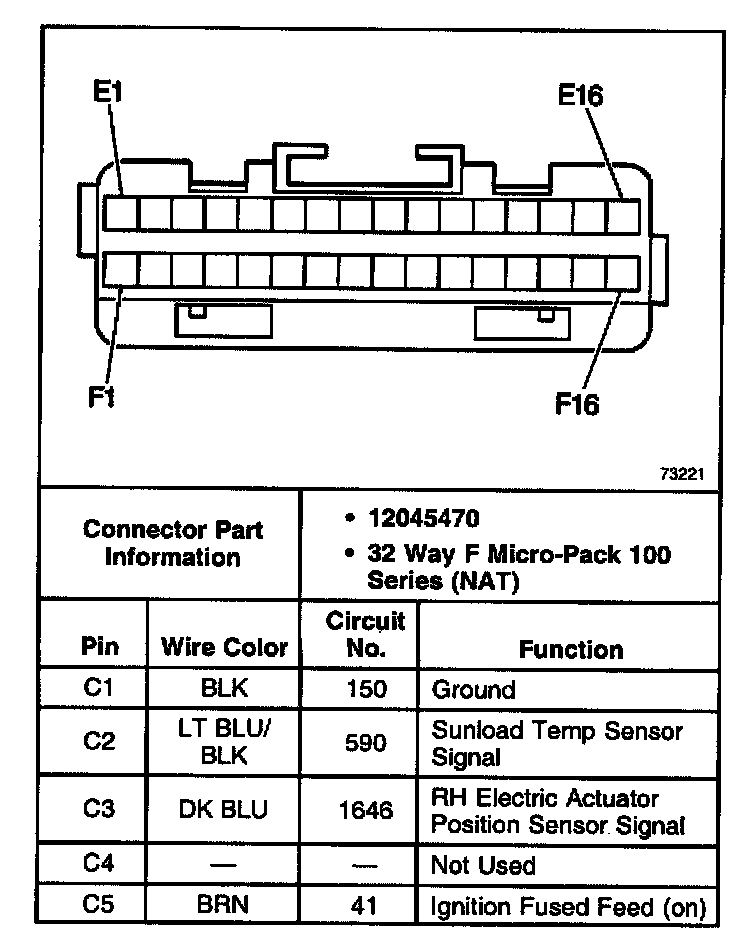

HVAC Control Assembly (Part 1 Of 2):



HVAC Control Assembly (Part 2 Of 2):
