Home >> Chevrolet >> 1999 >> Corvette V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Connector Views >> Headlamp >> Headlamp Opening Door Actuator Control Module - C1

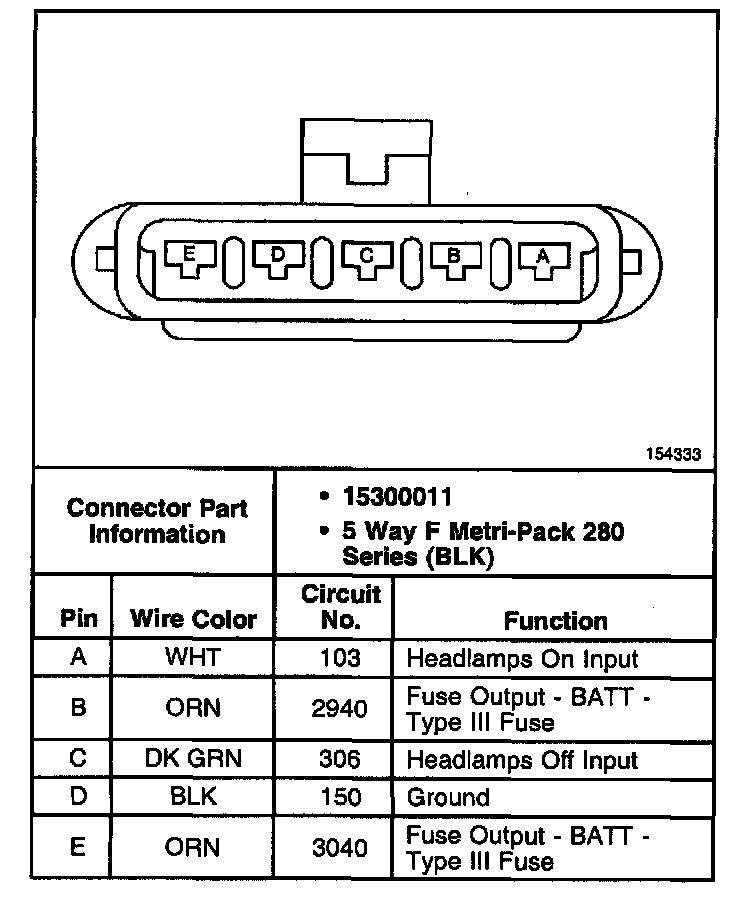

Headlamp Opening Door Actuator Control Module - C1

Headlamp Opening Door Actuator Control Module - C1:
