Headlamp
>>

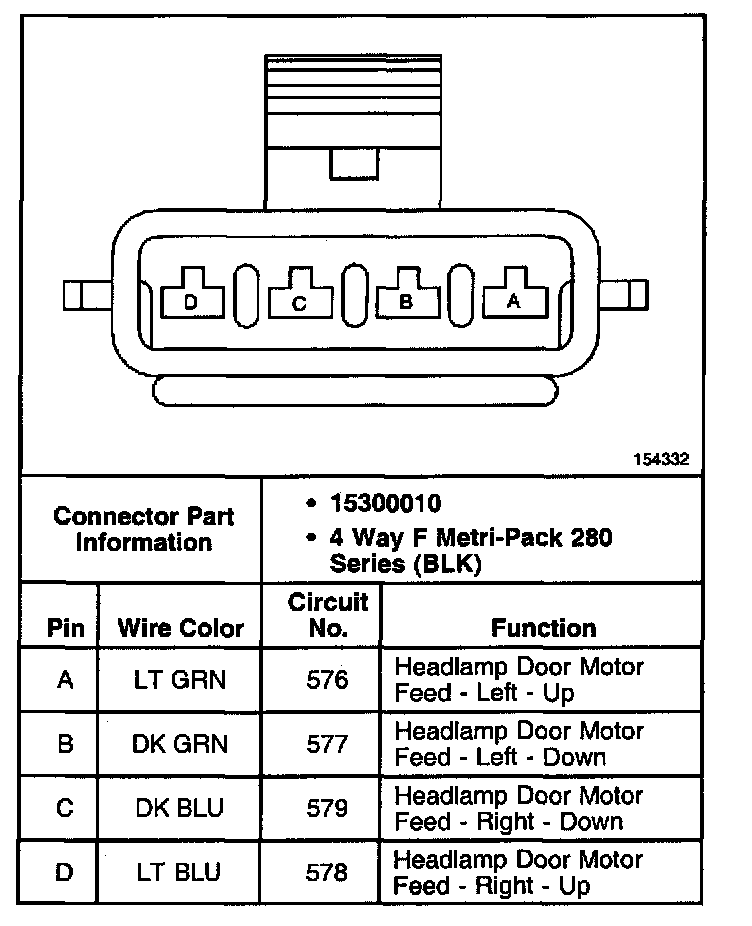

Headlamp Opening Door Actuator Control Module - C2
Headlamp Opening Door Actuator Control Module - C2
Headlamp Opening Door Actuator Control Module - C2:
