Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1999
>>
Corvette V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio, Stereo, and Compact Disc
>>
Bose(R) Signal Processor
Bose(R) Signal Processor

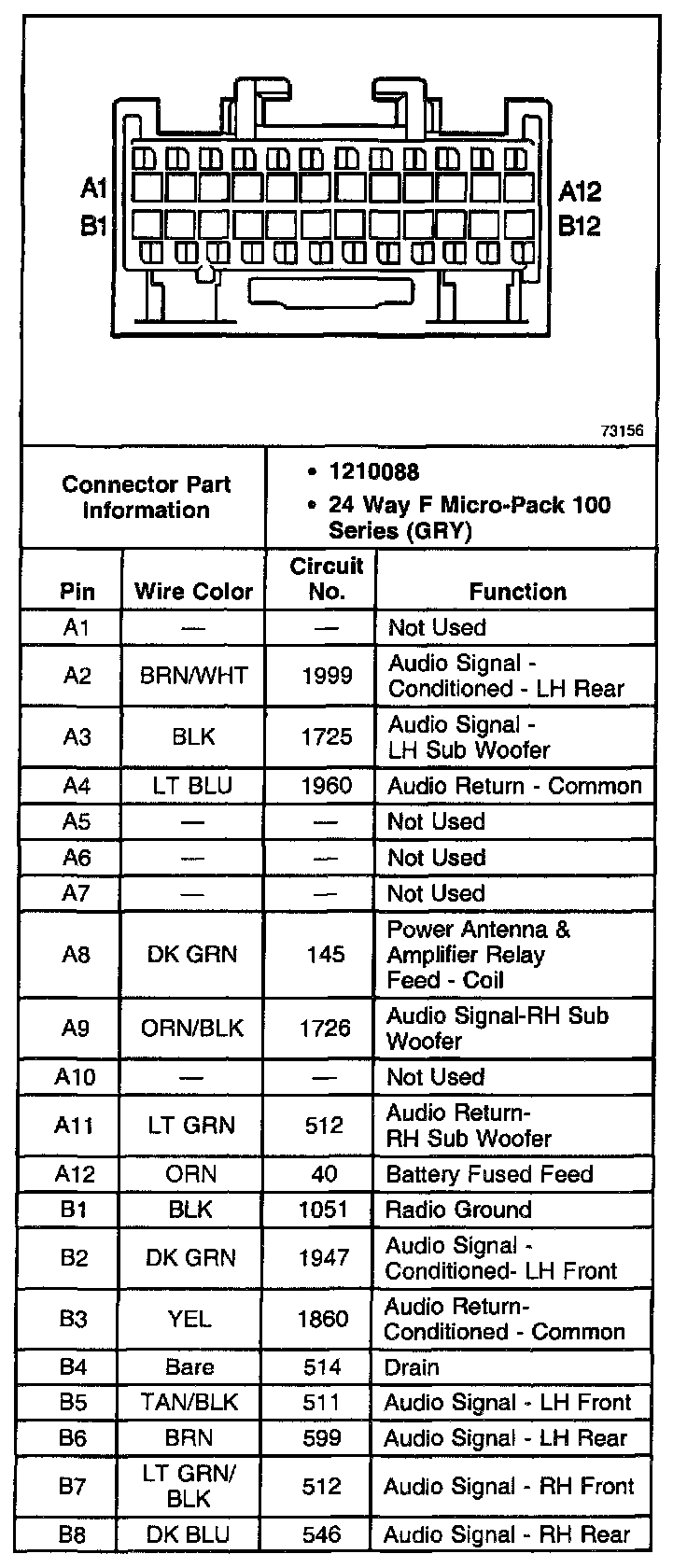

Bose(R) Signal Processor (Part 1 Of 2):

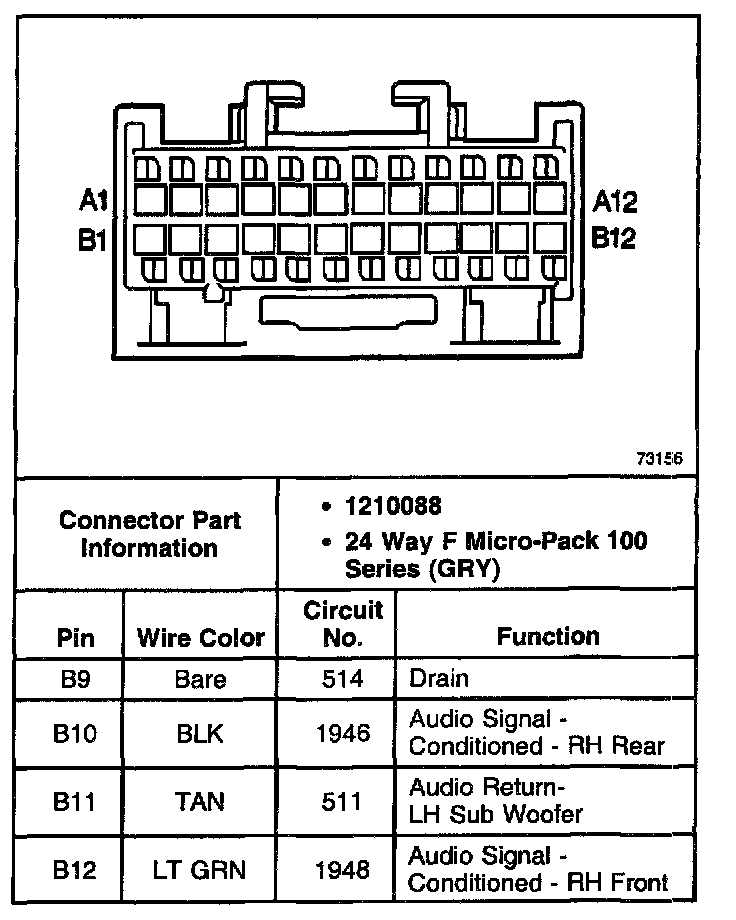

Bose(R) Signal Processor (Part 2 Of 2):
