A/T Inline Harness Connector End Views

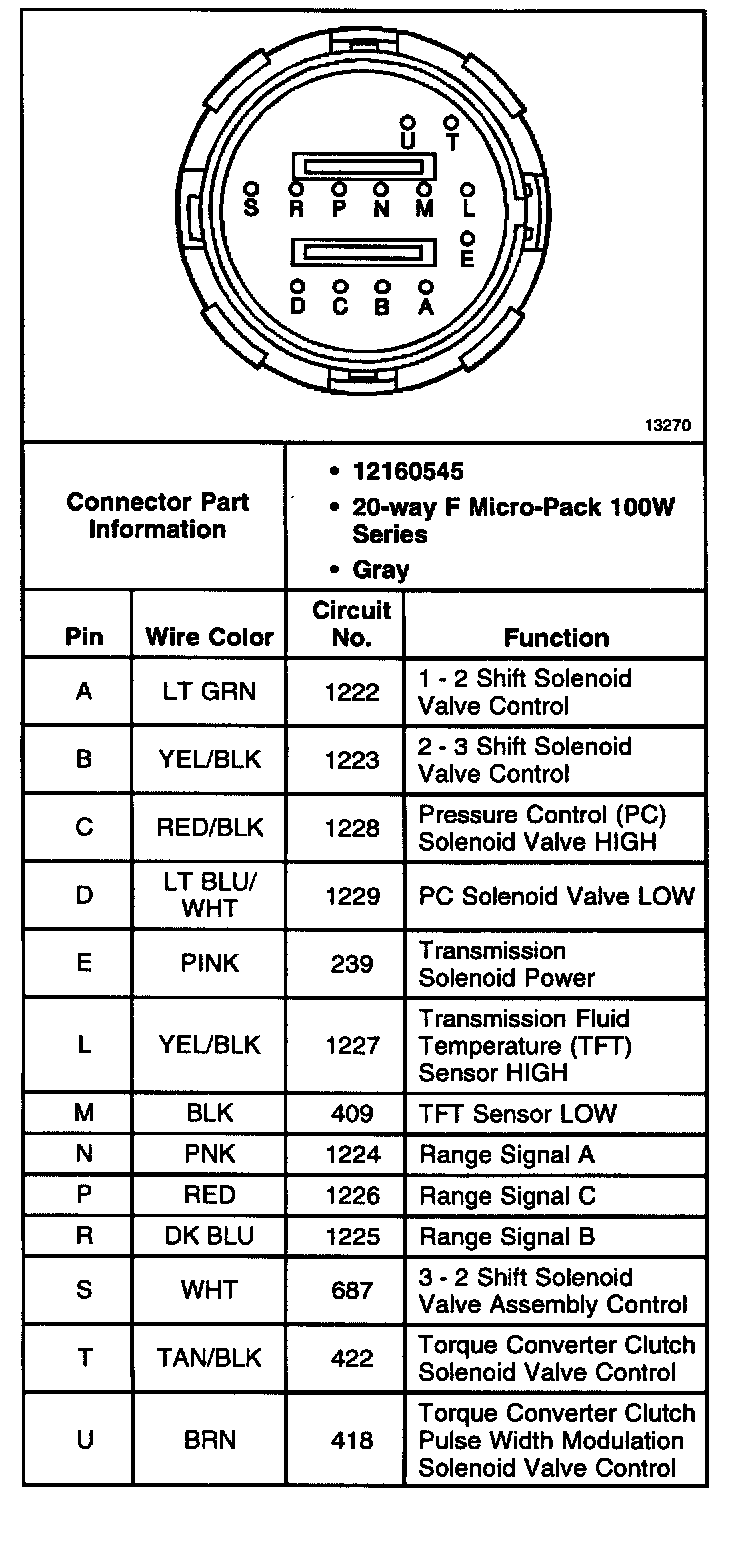

Automatic Transmission Wiring Harness Assembly 20-way Connector, Transmission Side





Automatic Transmission Wiring Harness Assembly 20-way Connector, Engine Side
