A/T Internal Connector End Views
AT Internal Connector End Views

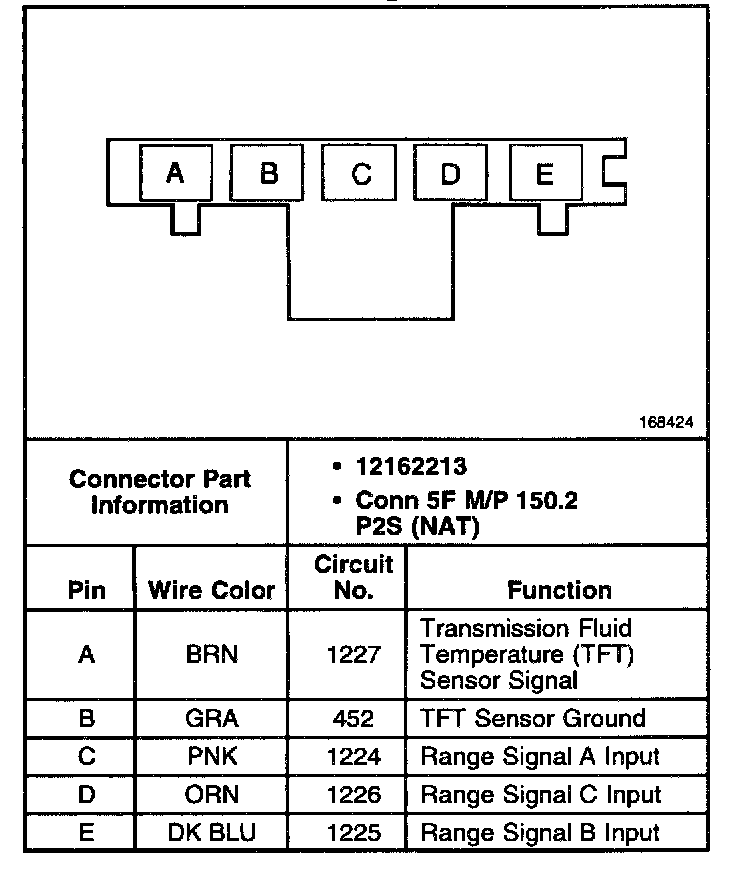

Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch Connector, Wiring Harness Side
2 - 3 Shift Solenoid (SS) Valve Connector, Wiring Harness Side
1 - 2 Shift Solenoid (SS) Valve Connector, Wiring Harness Side

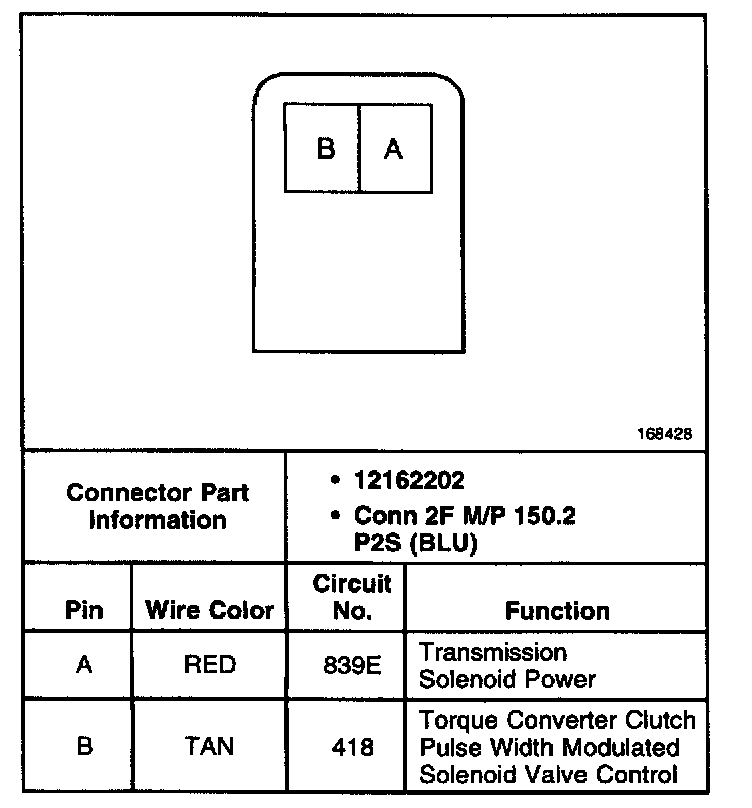

Torque Converter Clutch Pulse Width Modulated (TCC PWM) Solenoid Valve Connector, Wiring Harness Side
3 - 2 Shift Solenoid (SS) Valve Assembly Connecter Wiring Harness Side
Pressure Control (PC) Solenoid Valve Connector, Wiring Harness Side
Torque Converter Clutch (TCC) Solenoid Valve Connector, Wiring Harness Side
