Home >> Chevrolet >> 1999 >> Corvette V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Connector Views >> Trunk / Liftgate Switch >> Fog Lamp/Rear Compartment Lid Release Switch (Domestic)

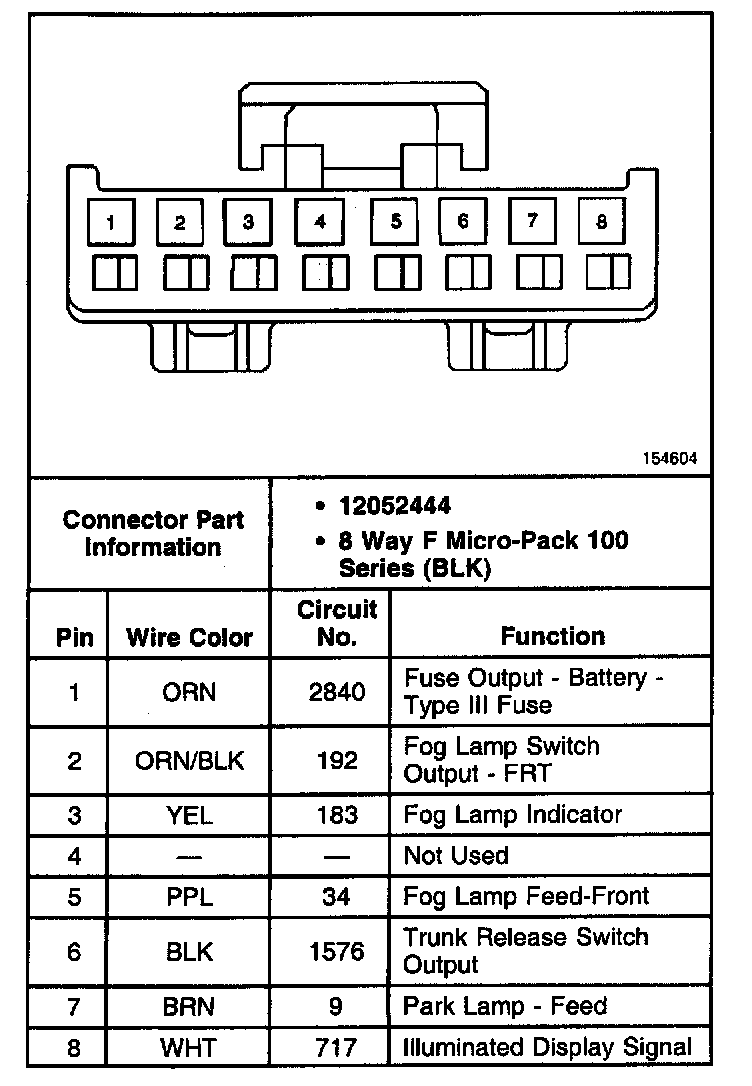

Fog Lamp/Rear Compartment Lid Release Switch (Domestic)

Fog Lamp/Rear Compartment Lid Release Switch (Domestic):
