Home
>>
Chevrolet
>>
1999
>>
Corvette V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Brake Warning Indicator
>>

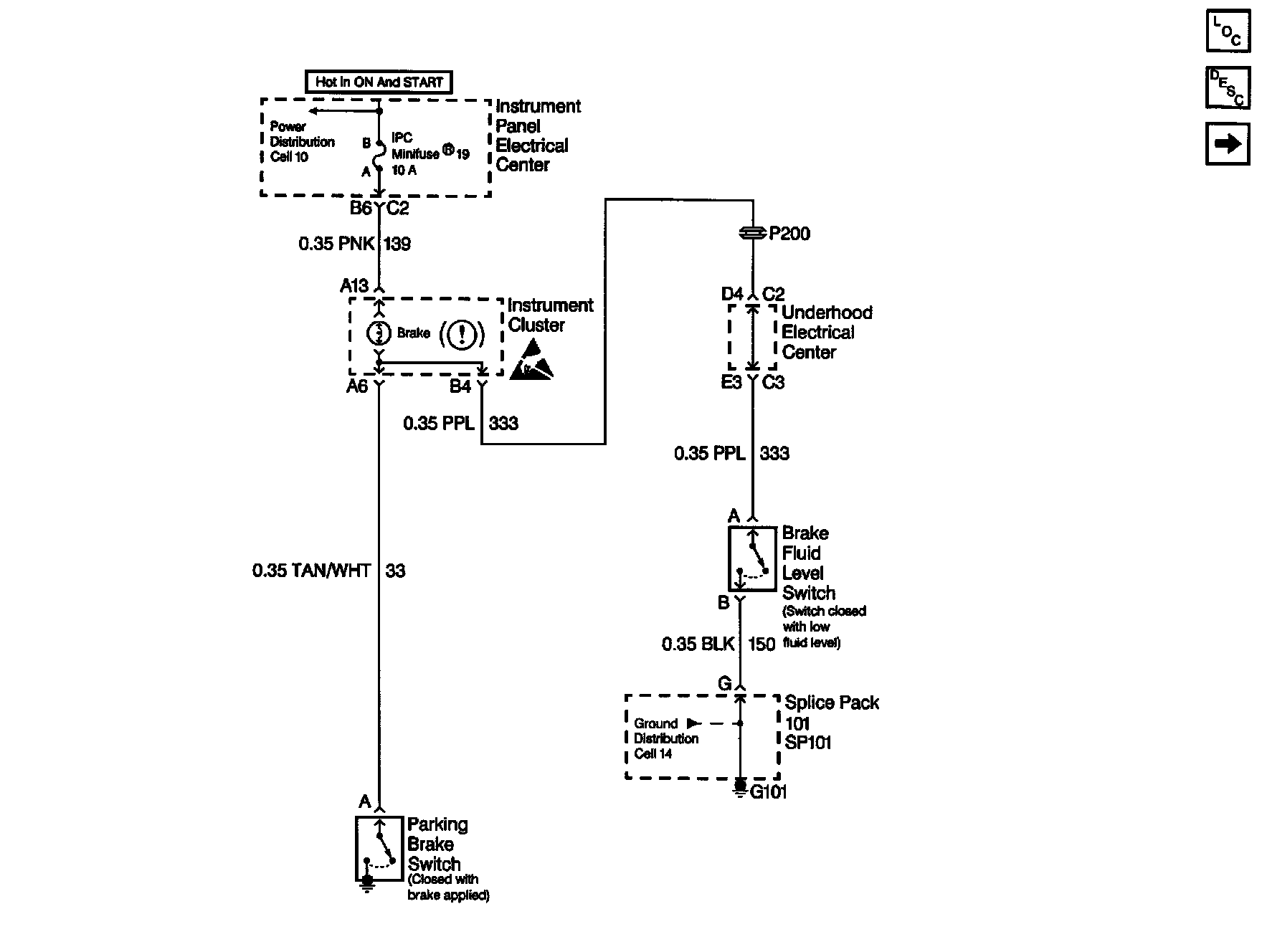

Parking Brake Switch and Brake Fluid Level Switch
Parking Brake Switch and Brake Fluid Level Switch
