Home
>>
Chevrolet
>>
1999
>>
Corvette V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Manual Transmission/Transaxle
>>

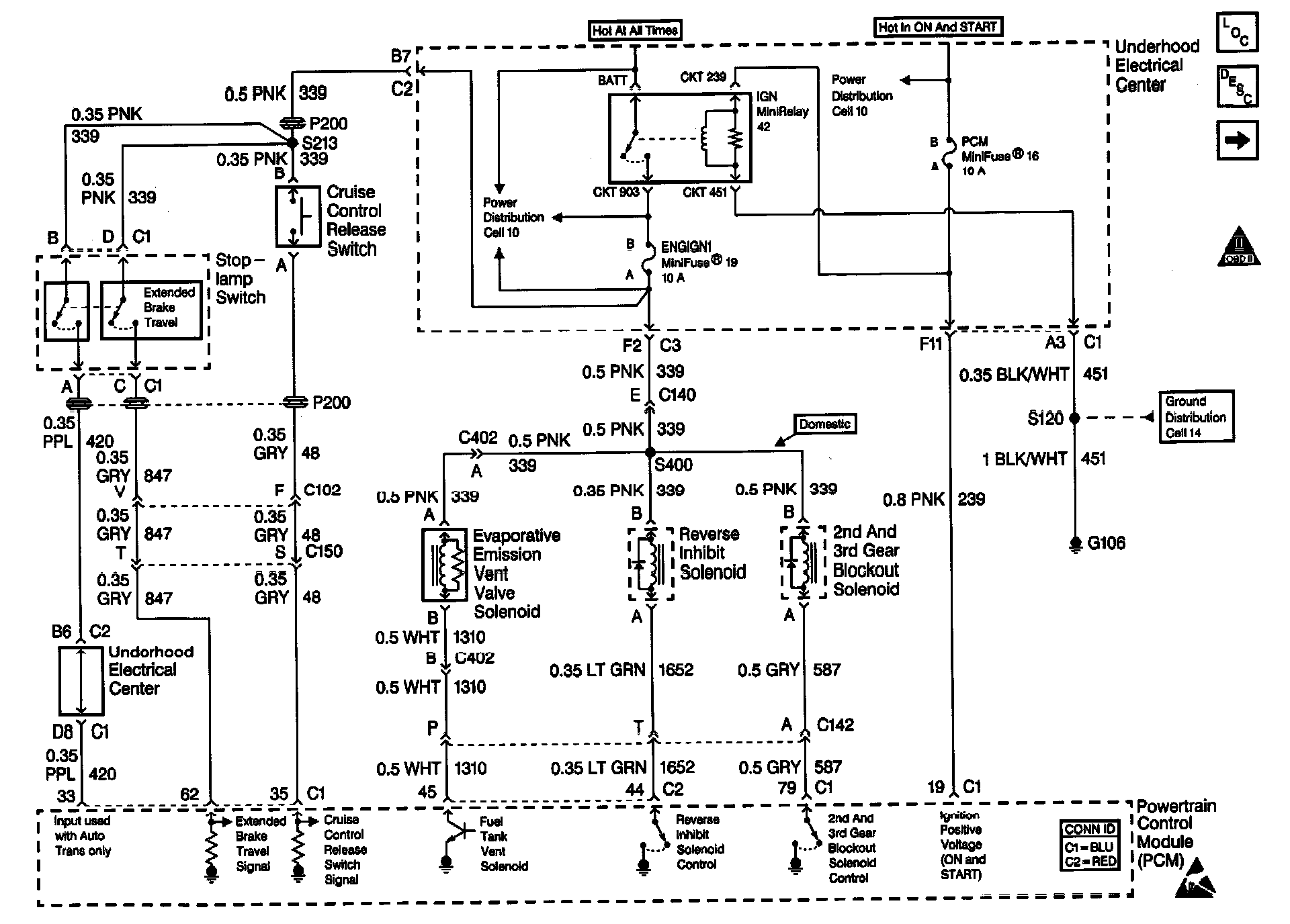

(Cell 35: Stoplamp Switch and Miscellaneous Solenoids)
(Cell 35: Stoplamp Switch and Miscellaneous Solenoids)
