SP203
SP203

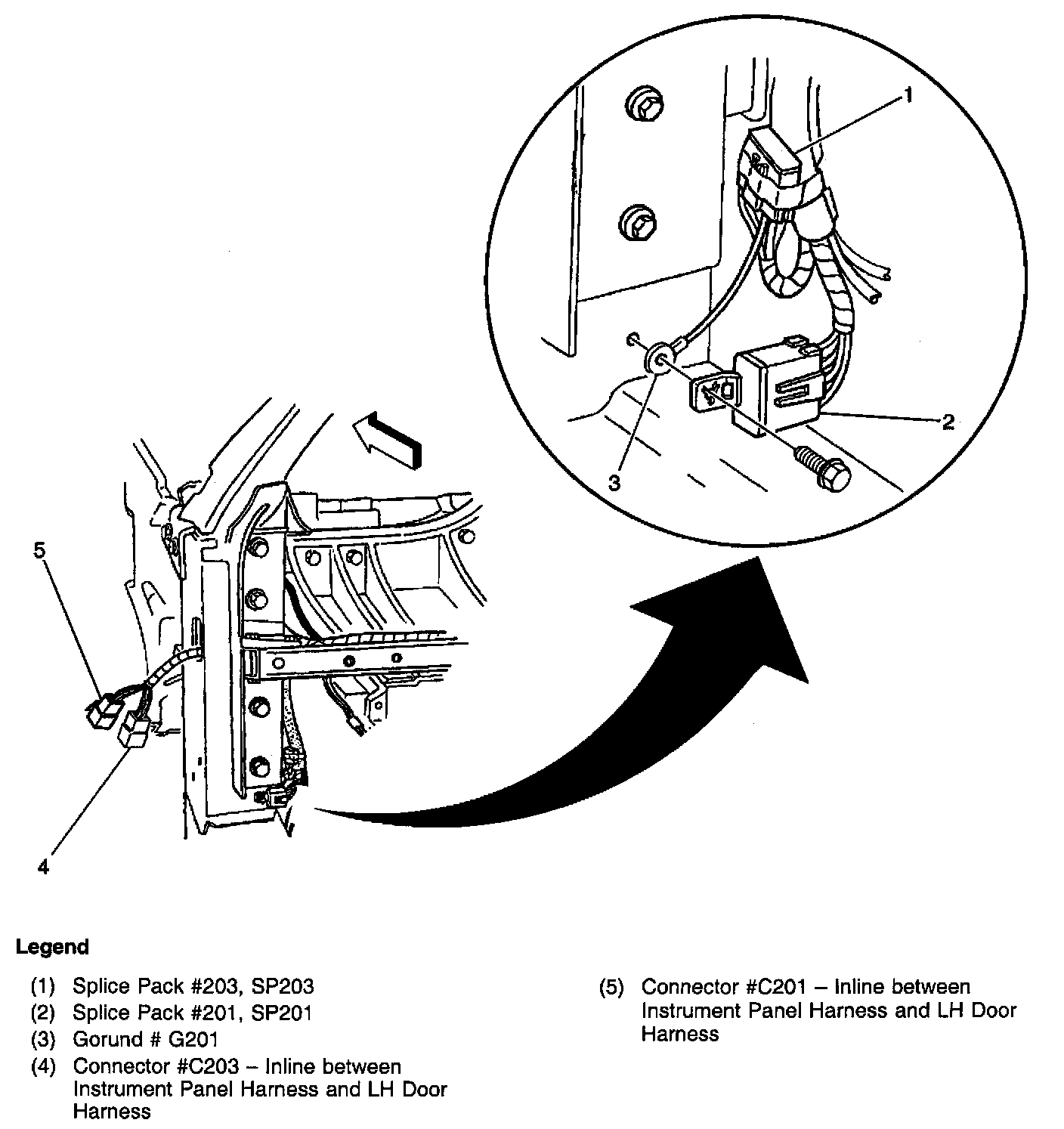

Bottom Of The LF "A" Pillar:
Splice Pack 203 Instrument panel harness, grounded to G201 (CKT 351)
