Vacuum and Vapor Hose Diagrams
>>
Heating and Air Conditioning
>>
Vacuum Solenoid Valve HVAC
Vacuum Solenoid Valve HVAC

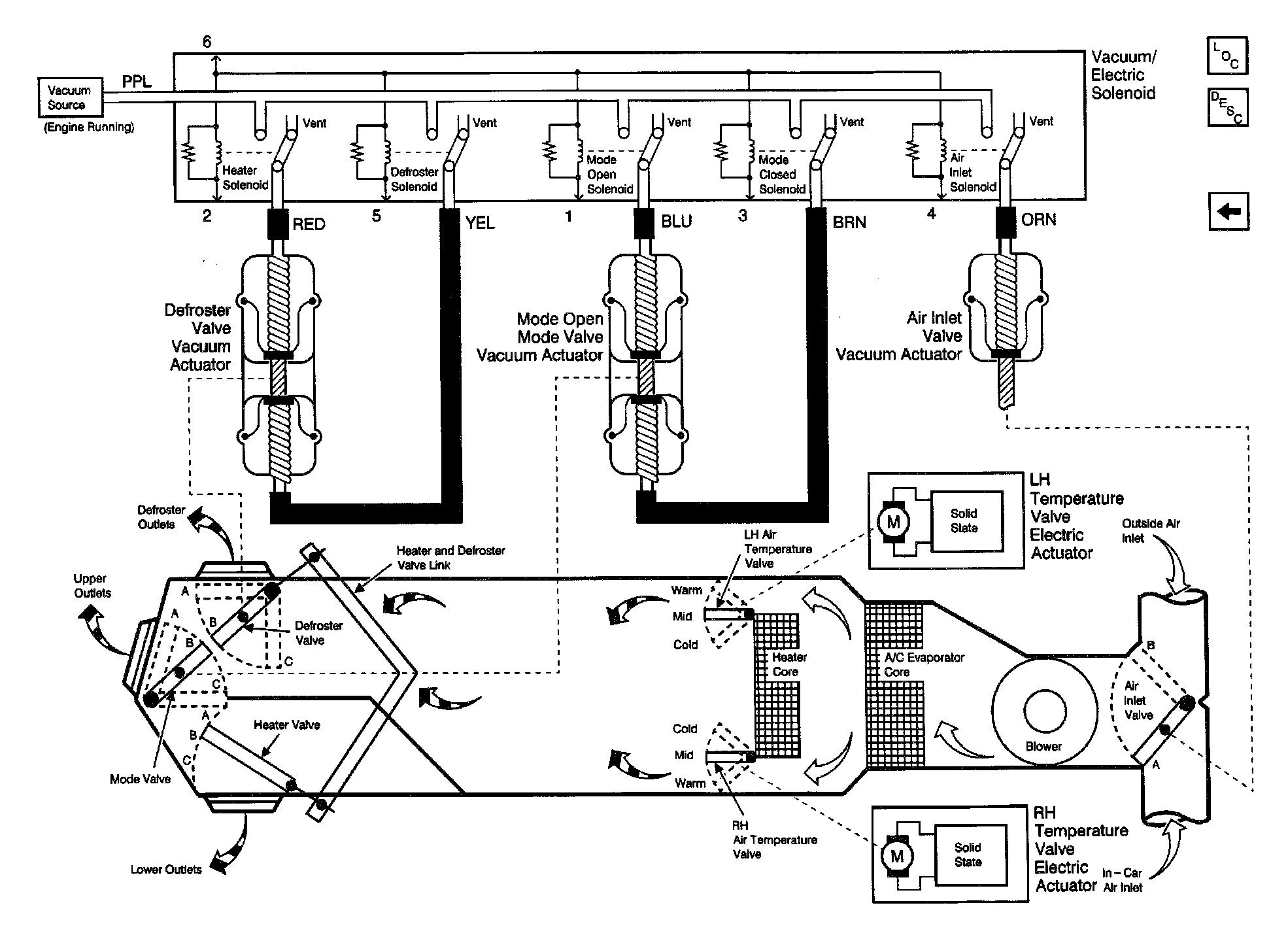

HVAC Air Delivery Schematics: Vacuum Routing:
HVAC Air Delivery Schematics: Solenoid Control:
