Compressor Clutch Diode HVAC: Locations

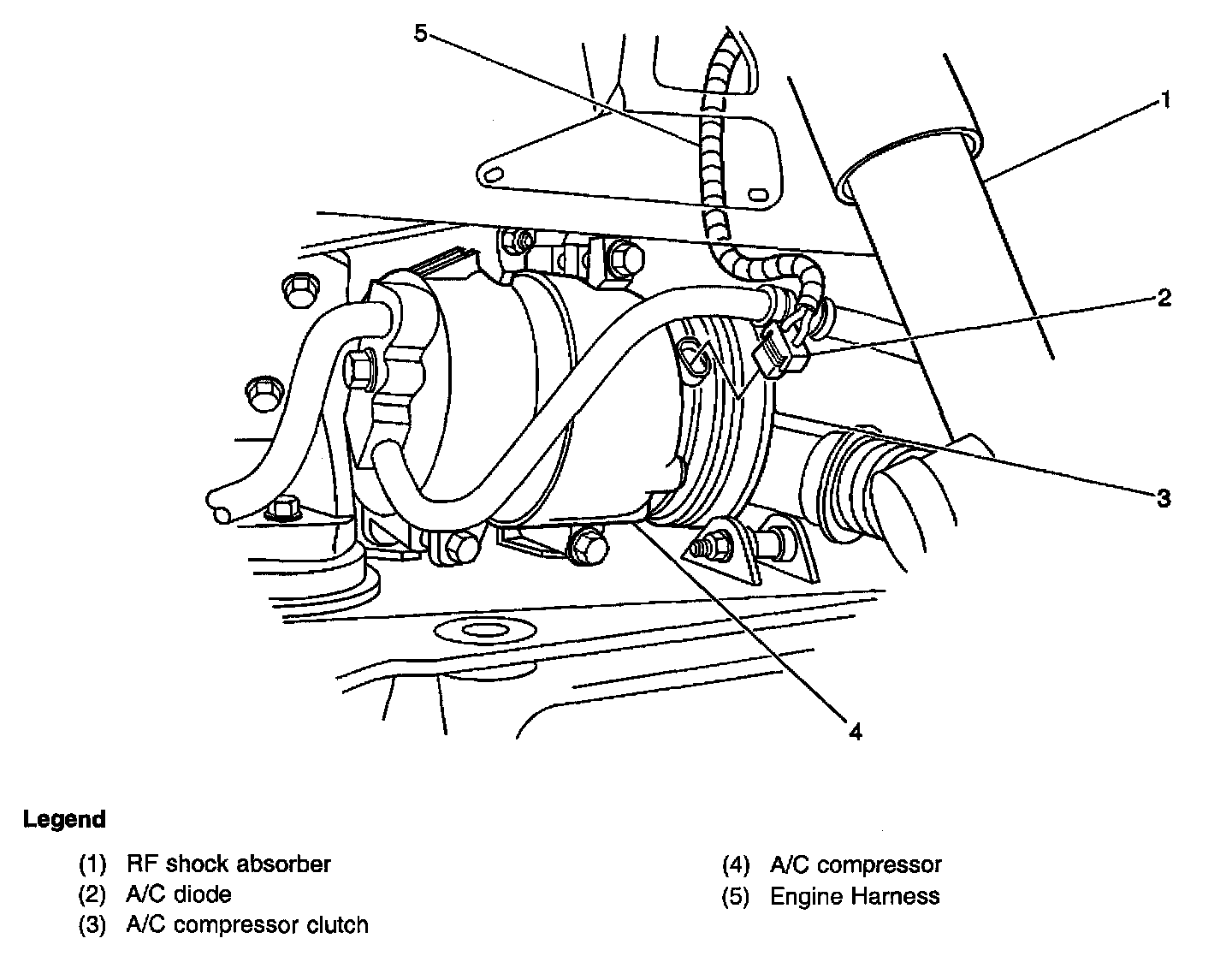

Behind The RF Shock Absorber:




In the forward lamp harness, at the A/C compressor clutch coil connector.
