Instrument Panel (IP) - Trim Pad Replacement - Upper

REMOVAL PROCEDURE



1. Remove the console.
2. Remove the I/P accessory trim plate.
3. Remove the driver knee bolster trim panel.
4. Remove the instrument panel compartment.
5. Remove the windshield defroster grille.
6. Insert the DRL and sunload sensors, if equipped, into the nearest openings in the windshield defroster duct.

Moving the sensors into the defroster duct provides additional clearance to remove the trim pad.

7. Remove the windshield side garnish moldings.

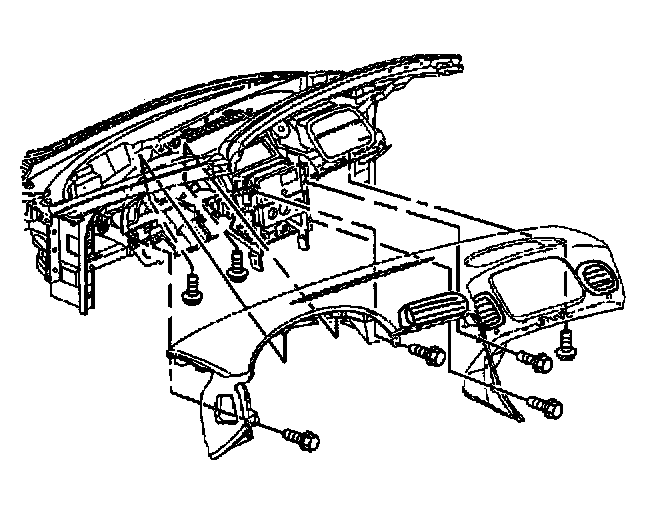

8. Remove the screws retaining the upper trim pad to the defroster duct.
9. Remove the screws retaining the upper trim pad to the LH and RH hinge pillars.




10. Remove the screws retaining the I/P cluster bezel to the upper trim pad.
11. Remove the screws retaining the upper trim pad to the driver knee bolster outer bracket and the center support bracket.
12. Remove the screw retaining the upper trim pad to the passenger SIR bracket.




13. Tilt the steering wheel to the lowest position.

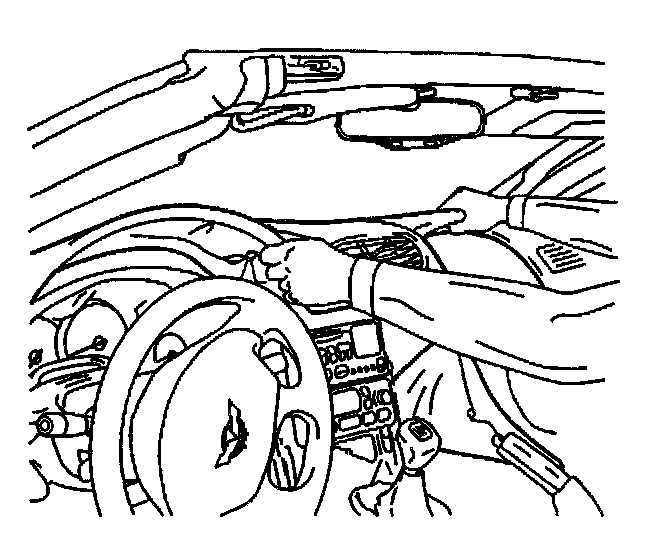

14. Lift the rearward edge of the upper trim pad approximately 5 cm (2 in) to provide clearance for the air distribution duct located on the underside of the trim pad.
15. SLOWLY pull the upper trim pad away from the windshield while guiding the tabs on the LH and RH side of the trim pad past the hinge pillars.

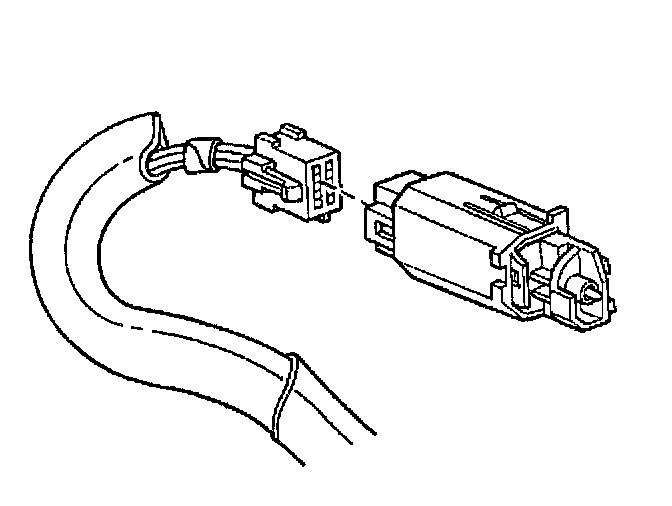

16. Disconnect the hazard warning switch electrical connector.
17. Remove the upper trim pad from the vehicle.

INSTALLATION PROCEDURE



1. Connect the hazard warning switch electrical connector.




2. Install the I/P upper trim pad into position.
2.1. Tilt the forward edge of the trim pad down slightly.
2.2. SLOWLY begin to move the trim pad into position while guiding the tabs on the LH and RH side of the trim pad past the hinge pillars.
2.3. Locate the trim pad by guiding the alignment notch on the underside of the pad onto the alignment pin on the dash panel.
2.4. Lower the rearward edge of the pad into place.
3. Remove the DRL and sunload sensors, if equipped, from the openings in the windshield defroster duct and position above the trim pad.

NOTE: Refer to Fastener Notice in Cautions and Notices.




4. Install the screws retaining the upper trim pad to the windshield defroster duct.

Tighten
Tighten the I/P upper trim pad to windshield defroster duct screws to 1.9 N.m (17 lb in).

5. Install the screws retaining the upper trim pad to the LH and RH hinge pillars.

Tighten
Tighten the I/P upper trim pad to LH and RH hinge pillar screws to 2.5 N.m (22 lb in).




6. Install the screws retaining the upper trim pad to the driver knee bolster outer bracket, the center support bracket and the passenger SIR bracket.

Tighten
^ Tighten the I/P upper trim pad to driver knee bolster outer bracket screw to 1.9 N.m (17 lb in).
^ Tighten the I/P upper trim pad to I/P center support bracket screws to 1.9 N.m (17 lb in).
^ Tighten the I/P upper trim pad to passenger SIR bracket screw to 1.9 N.m (17 lb in).

7. Install the screws retaining the I/P cluster bezel to the upper trim pad.

Tighten
Tighten the I/P cluster bezel to I/P upper trim pad screws to 1.3 N.m (12 lb in).

8. Install the windshield side garnish moldings.
9. Install the windshield defroster grille.
10. Install the instrument panel compartment.
11. Install the driver knee bolster trim panel.
12. Install the I/P accessory trim plate.
13. Install the console.
