Backup Lamp Replacement (Bulb)




REMOVAL PROCEDURE
1. Remove the nearest inner taillamp.

Access the backup lamp through the taillamp opening.

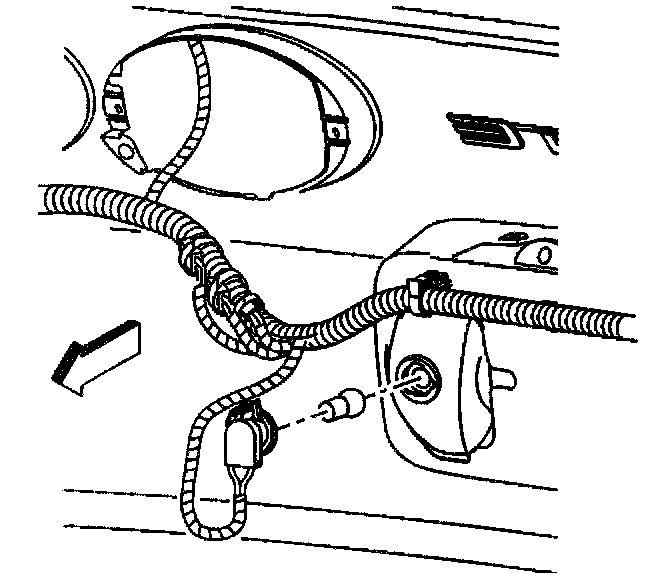

2. Remove the backup lamp socket from the backup lamp assembly.

Rotate the socket counterclockwise to disengage the locking tabs.
3. Remove the bulb from the socket.

INSTALLATION PROCEDURE
1. Install the bulb to the backup lamp socket. Rotate the socket clockwise to engage the locking tabs.
2. Install the backup lamp socket to the backup lamp assembly.
3. Install the inner taillamp.
